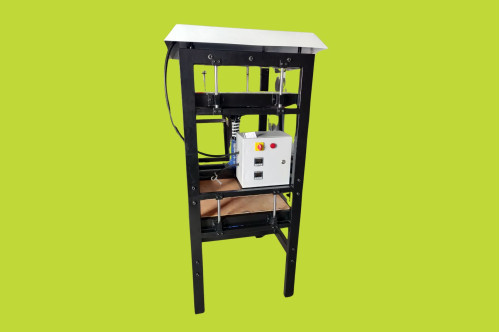

1x1 Meter Hot & Cold Press
"Providing the required services with utmost sincerity to our customers is our forte".
We Provide:
- Complete technical support & Installation
- Free virtual training upon receiving the machine
- We provide operating manual & safely regulations
- An additional 2 years warranty & free virtual maintenance is also provided
1) Hot Press
2) Cold Press
1) Hot Press:
MAIN DESIGN COMPONENTS:
1) 1200 x 1200 mm Aluminum base attached with plate heaters and whole supporting heavy-duty structure: 1 no
2) Process Control Panel synchronized by one master control: 1 nos.
Technical Data:
| Type | Hydraulic |
| Weight | 430 KG |
| Dimensions | 1500x1350x1600 MM |
| Pressure | 10 - 50Tonn |
SPECIFIC DATA
- Material to be processed: Recycled HDPE/PP/LDPE/PS/acrylic Ground Scrap
- Size to be manufactured: 1000 x 1000 mm Sheets
- Output capacity: Depending upon the material used.
- Recommended Mold size: 1050 x 1050 mm Top & bottom plates and frame.
- Max. Sheet Output: 1 sheet per hour max.
- Advanced Temperature control panel with power-saving technology.
- Total Connected Load: 15* kW (Approx.) (3phase)
MAIN SHEET PRESS
- Supporting structure MS Powder coated.
- 8 mm Top & bottom aluminium plates.
- 20 Heating plates on each side mounted on aluminium plates to ensure equal distribution of heat.
- 10 -50Ton standard Manual Jack at the bottom of the pressing system with pressure gauge.
- Standard 4 rolling mechanism to ensure smooth up-down rolling of the bottom plate.
2) Cold Press
DESIGN PARAMETERS WITH STANDARD SUPPLY:
- 1200 x 1200 mm MS Plate base attached with plate and whole supporting heavy duty structure: 1nos.
MAIN SHEET PRESS
- Size to be manufactured: 1000 x1000 mm Sheets
- Supporting structure MS Powder coated.
- 2-4 mm Top & bottom MS plates.
- 10 Ton standard Manual Jack at the bottom of the pressing system with pressure gauge.
- Standard 4 rolling mechanism to ensure smooth up-down rolling of the bottom plate.
Our Sheetpress systems are CE CERTIFIED Under the below directives and Standards 1. 2006/42/EC 2. 2014/35/EU
The Recreus Lab is an Indian company that is registered with a VAT (GST) number of 24CNHPBO565KIZS and provides worldwide shipping services.
Condition:
New
Country of Origin:
India
Made according to the Precious Plastic drawings? :
Yes
Weight (KG):
900KG
Domestic shipping to
India:
Free
International shipping to
Australia:
- One item: €1,500.00
- Each additional item: €0.00
Africa:
- One item: €1,400.00
- Each additional item: €0.00
Asia:
- One item: €1,300.00
- Each additional item: €0.00
North America:
- One item: €1,500.00
- Each additional item: €0.00
South America:
- One item: €1,500.00
- Each additional item: €0.00
Europe:
- One item: €1,600.00
- Each additional item: €0.00
Oceania:
- One item: €1,500.00
- Each additional item: €0.00
Shipping Information
:
