Plastic detection

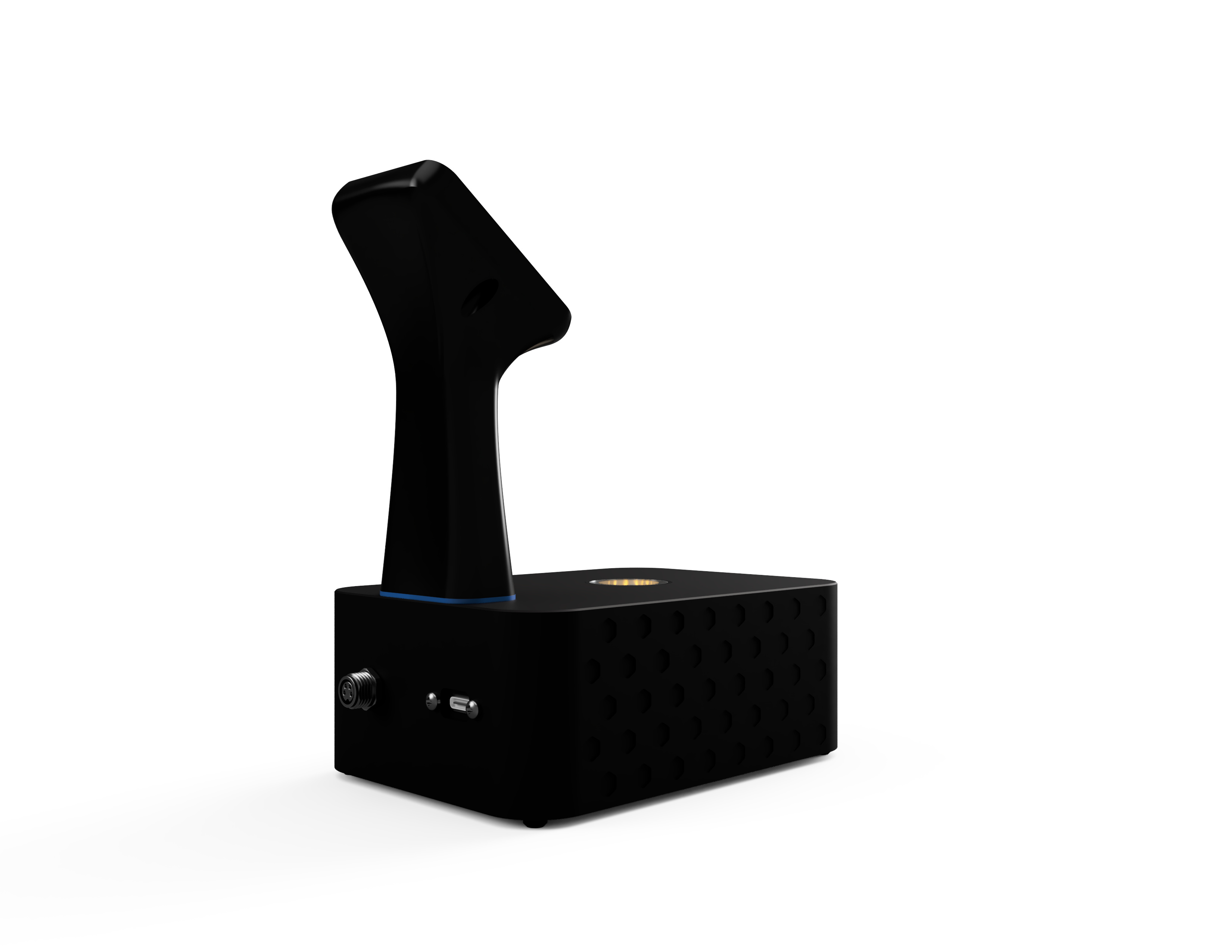

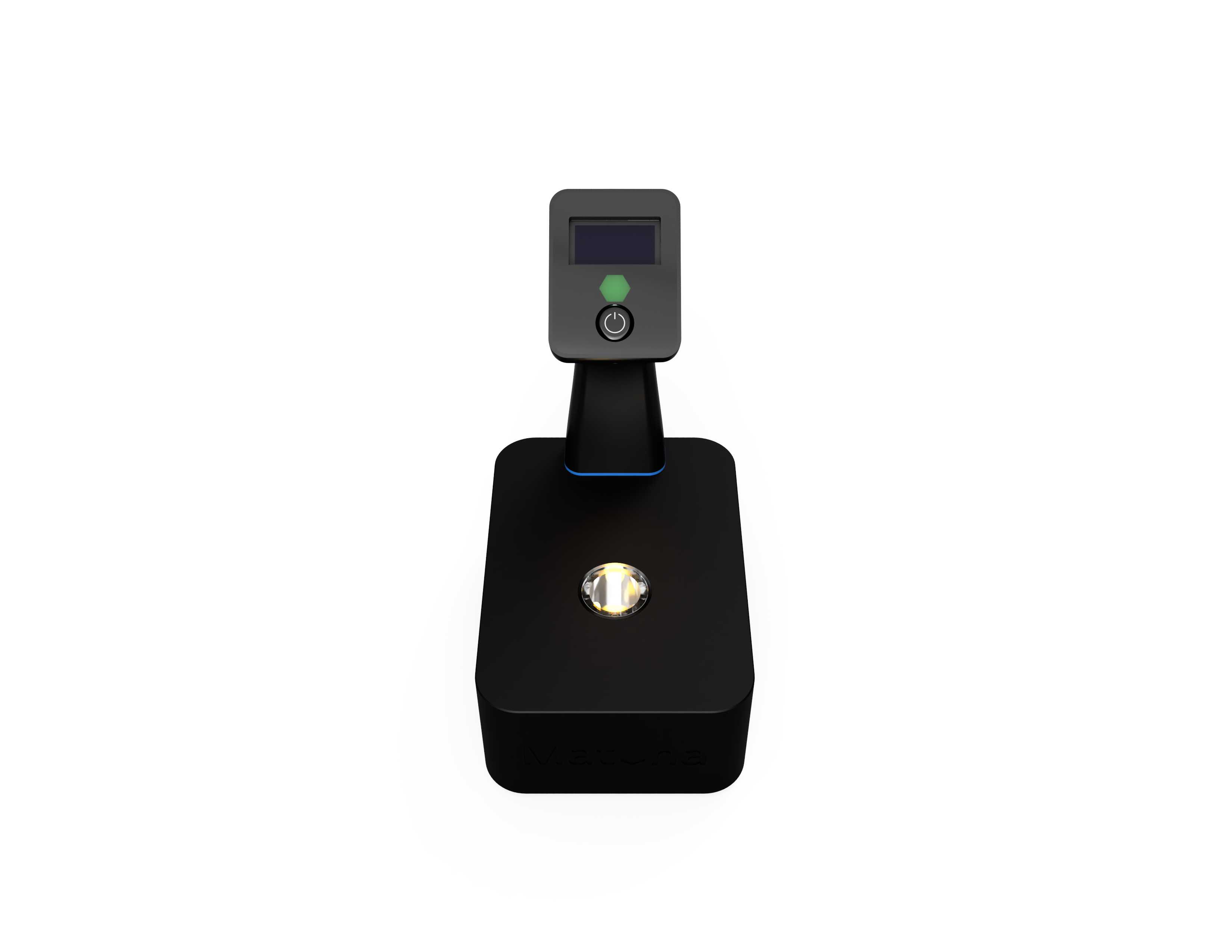

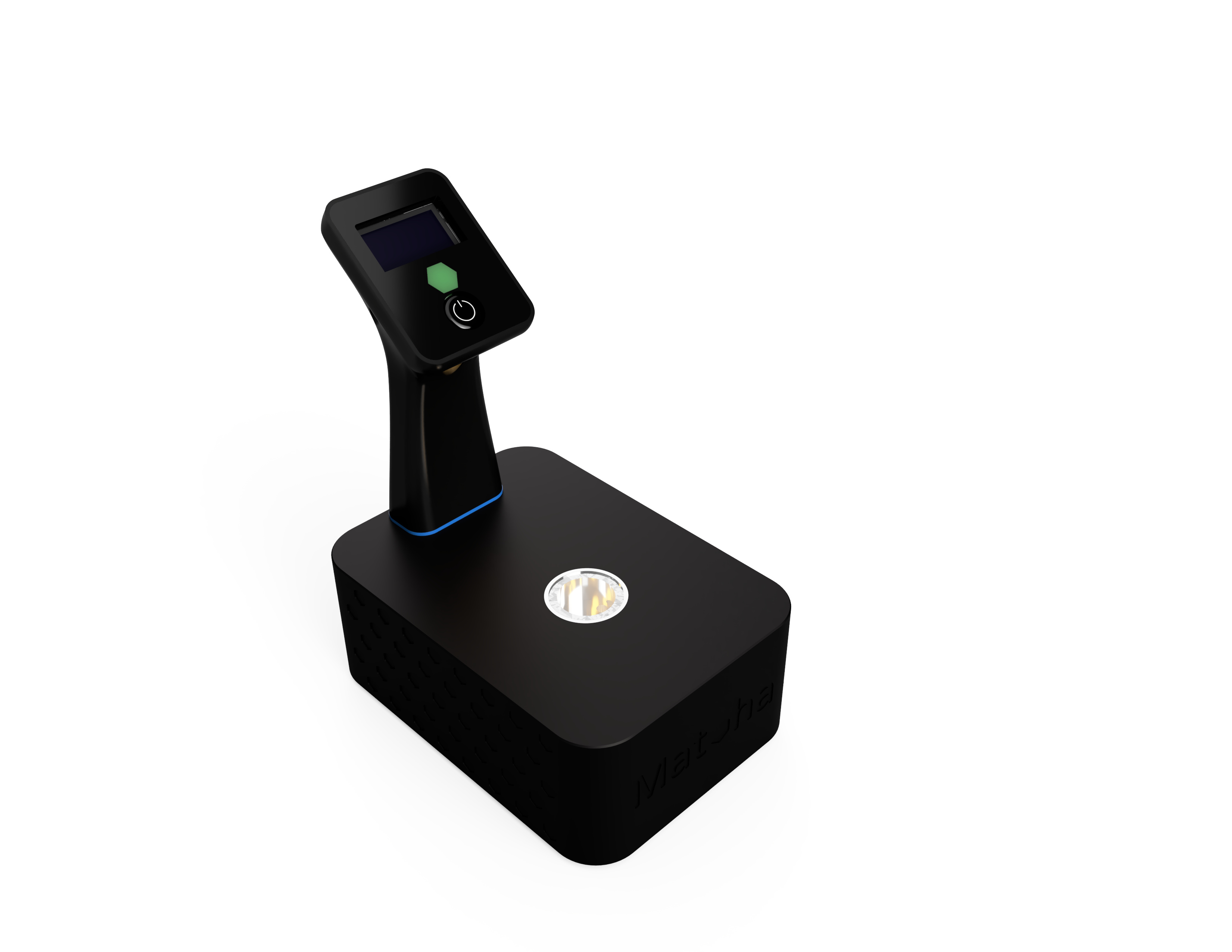

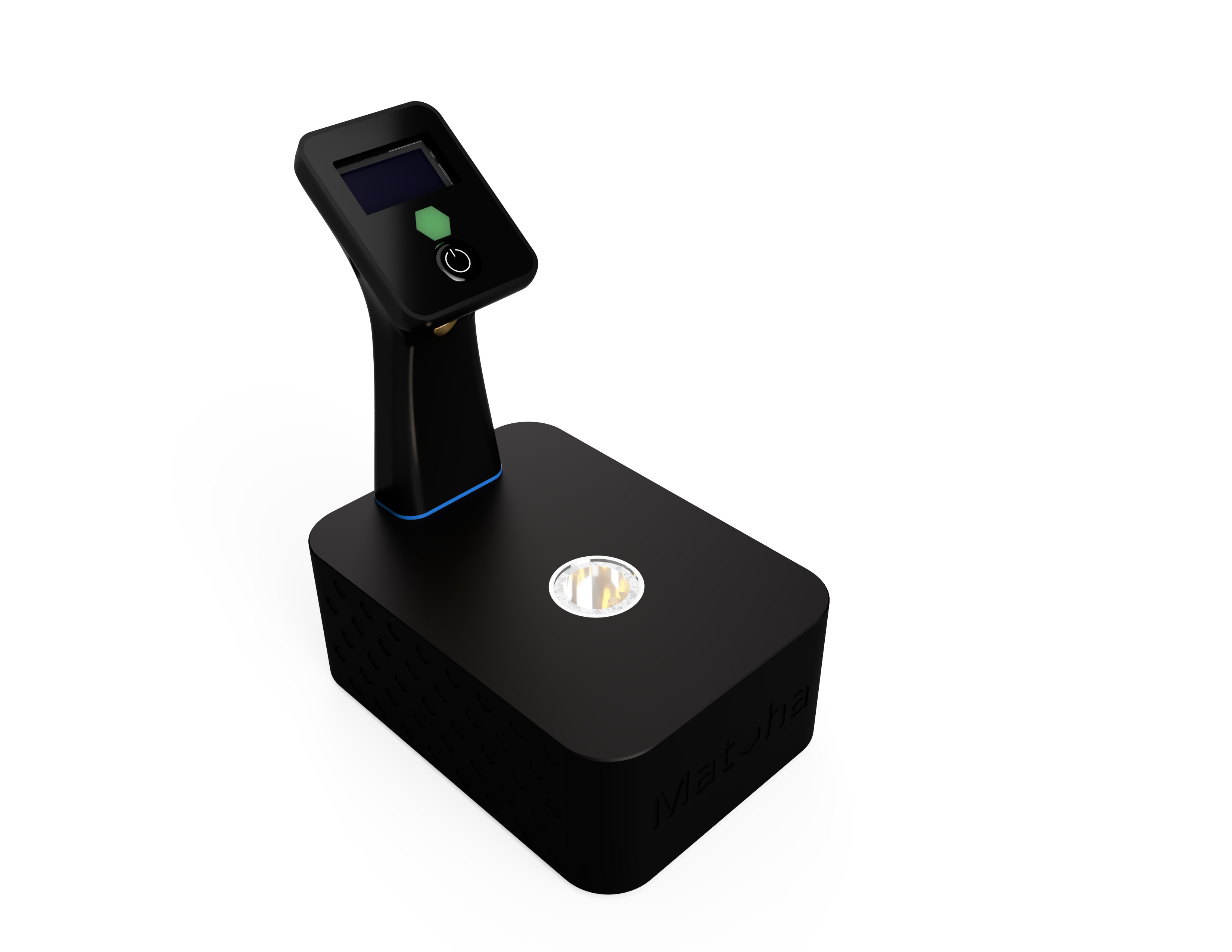

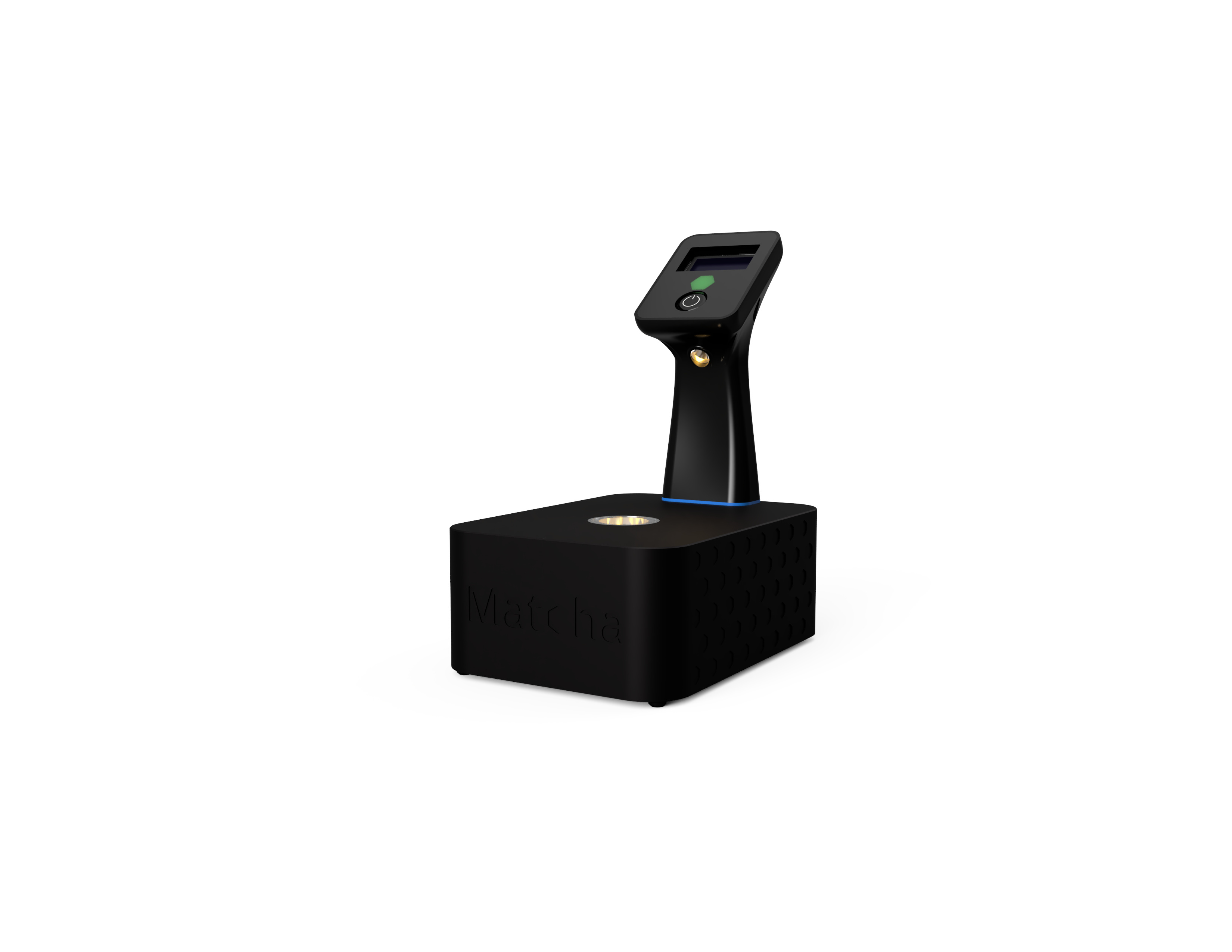

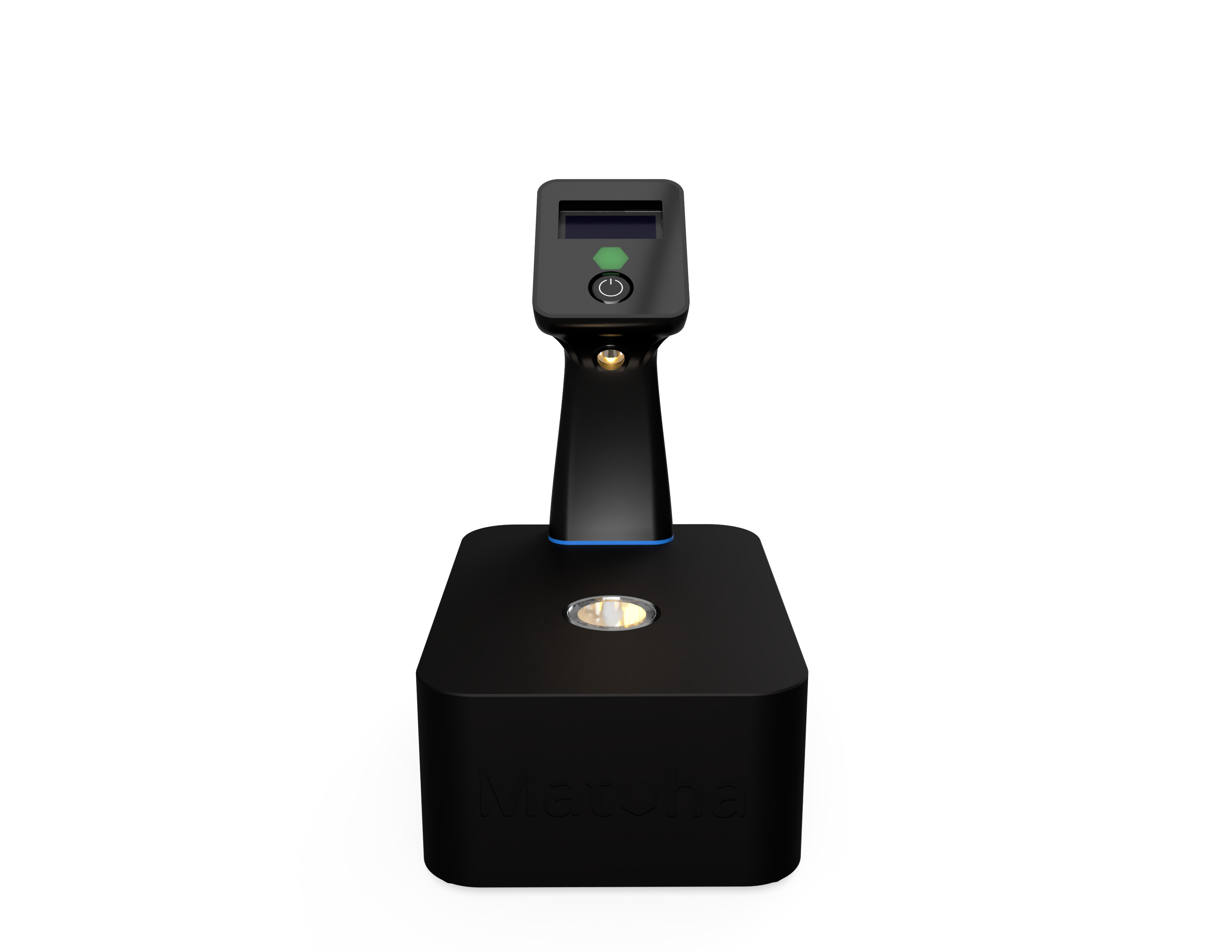

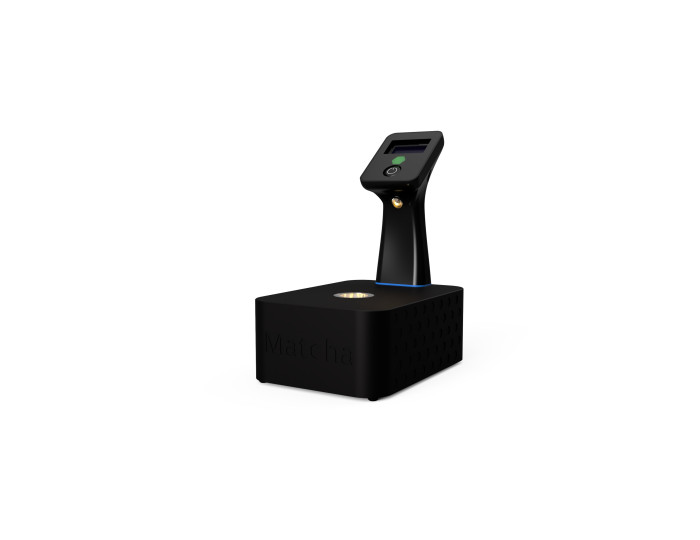

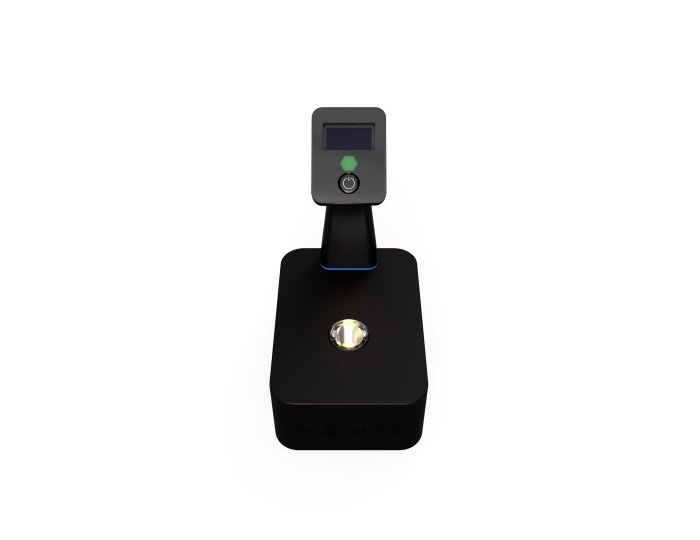

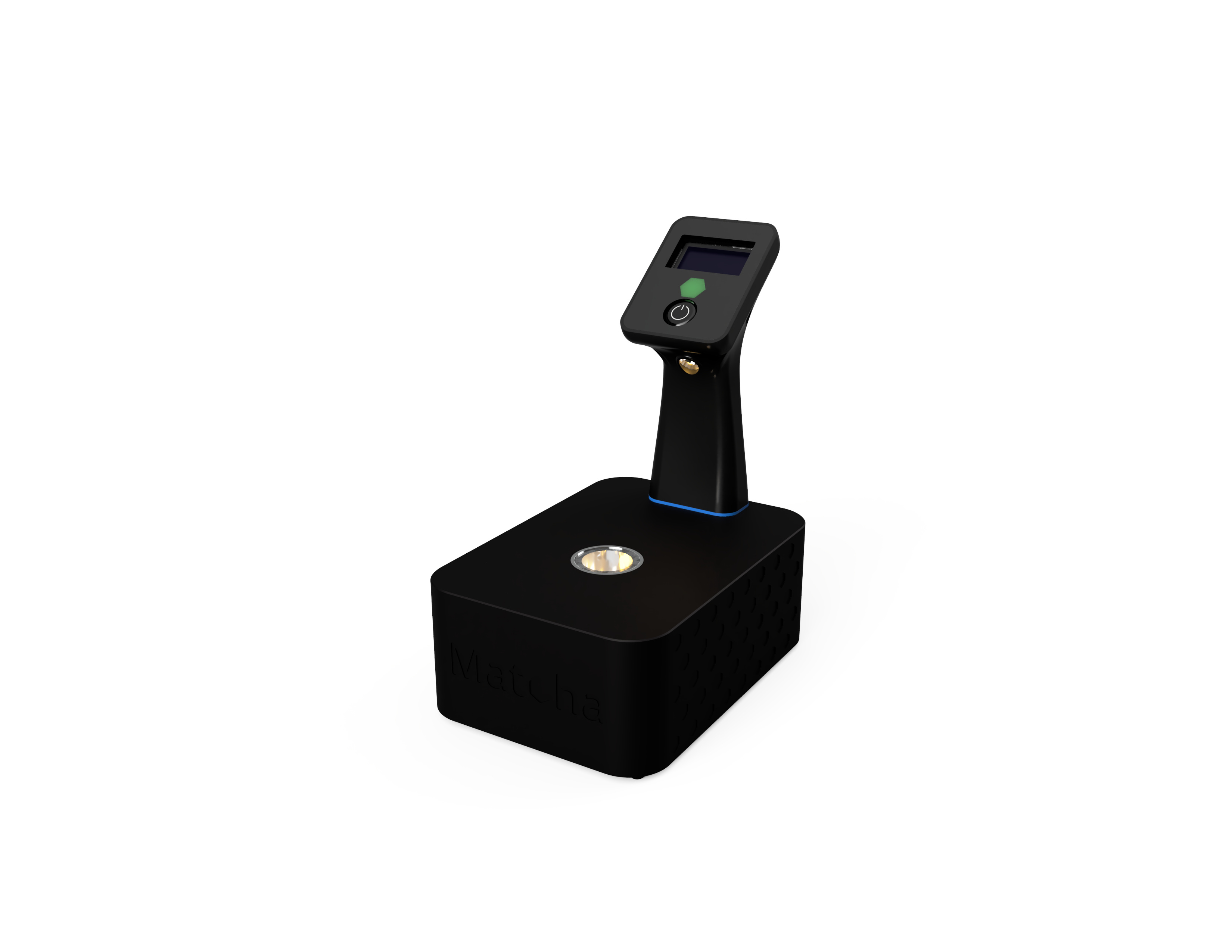

The plasticpreneur plastic scanner is used to enable rapid sorting, identification, waste audits and educational experiences.
Plastic is placed underneath the Sensor and within seconds the plastic type will be shown on the display.
Key advantages
- Lightweight and portable
- Internal battery for up to 6 hours of continuous measurements
- App, cloud storage and open-source communication library included
- EU-made, high quality components
25 Materials can be identified:
PET, PE, PVC, PP, PS, PC, ABS, PMMA, PA, PLA, PETG, PU, PVDF, PEEK, POM, PAI, ASA, PSU, PEI, SAN, EVA, NBR, SILICONE, RUBBER, NEOPRENE
Transparent and opaque samples supported.
Currently no differentiation between HDPE and LDPE.
Additional, own, materials can be added via the app for free.
Electrical specifications
Electric: 200-240 V, 50-60 Hz
Power consumption: 5 W, supplied via the included Micro-USB power adapter with international plugs
Internal battery: built-in 2400 mAh Li-Po rechargeable battery, for up to 6 hours of continuous measurements
Plug Types
Type F (EU), Type G (GBR), Type B (USA, CAN, JPN)
Size and dimensions
Dimensions: 15 x 10 x 17 cm (L x W x H)
Weight: 0.7 kg
Packaging: comes in an aluminium case, packed in a cardboard box
Distinctive features
NIR Sensor
To detect and identify the plastic type.
Display
For simple operation and understanding.
Plug & Play
Ready to use with plug and adapters.
General specifications
Operating principle: NIR reflectance spectroscopy, within a band in the 1-2 µm range. On-board AI algorithms instantly interpret the results.
Algorithms & library: state-of-the-art machine learning / AI algorithms included, no additional setup or fees. Own libraries can be created and materials added.
Cloud-enabled for detailed insights into scanning data, for operations and traceability. Free iOS / Android app included
Identification speed: 0.5 s
Operating temperature: 10-40 C°
Operating max. Altitude: 2000 m Connectivity: Wi-Fi (2.4 GHz) for updates & connection to the cloud, Bluetooth 4.0 for connecting to the app.
App & cloud are included, as well as 1 GB of data storage and open-source communication library. Each PSMK2 can be registered to one account/e-mail.
The NIR scanner can not identify black plastics. Some very thin (< 10 µm) films can also cause issues although most films can be easily identified. Wet and contaminated material needs to be cleaned and dried before scanning.
Getting started
Only a few steps are required to unpack and set up the scanner. The identification process can start immediately after turning on the scanner. A built-in battery allows continuous measurements for up to 6 hours without recharging.
Shipping
We ship worldwide - the shipping costs depend on the country. Please contact us.
The machine comes in tailor made packaging via DHL Express parcel shipping, or if ordered in a set with other machines, via freight-forwarding on a pallet.
