Extrusion Machine (V3) & Shredder Machine (V3)

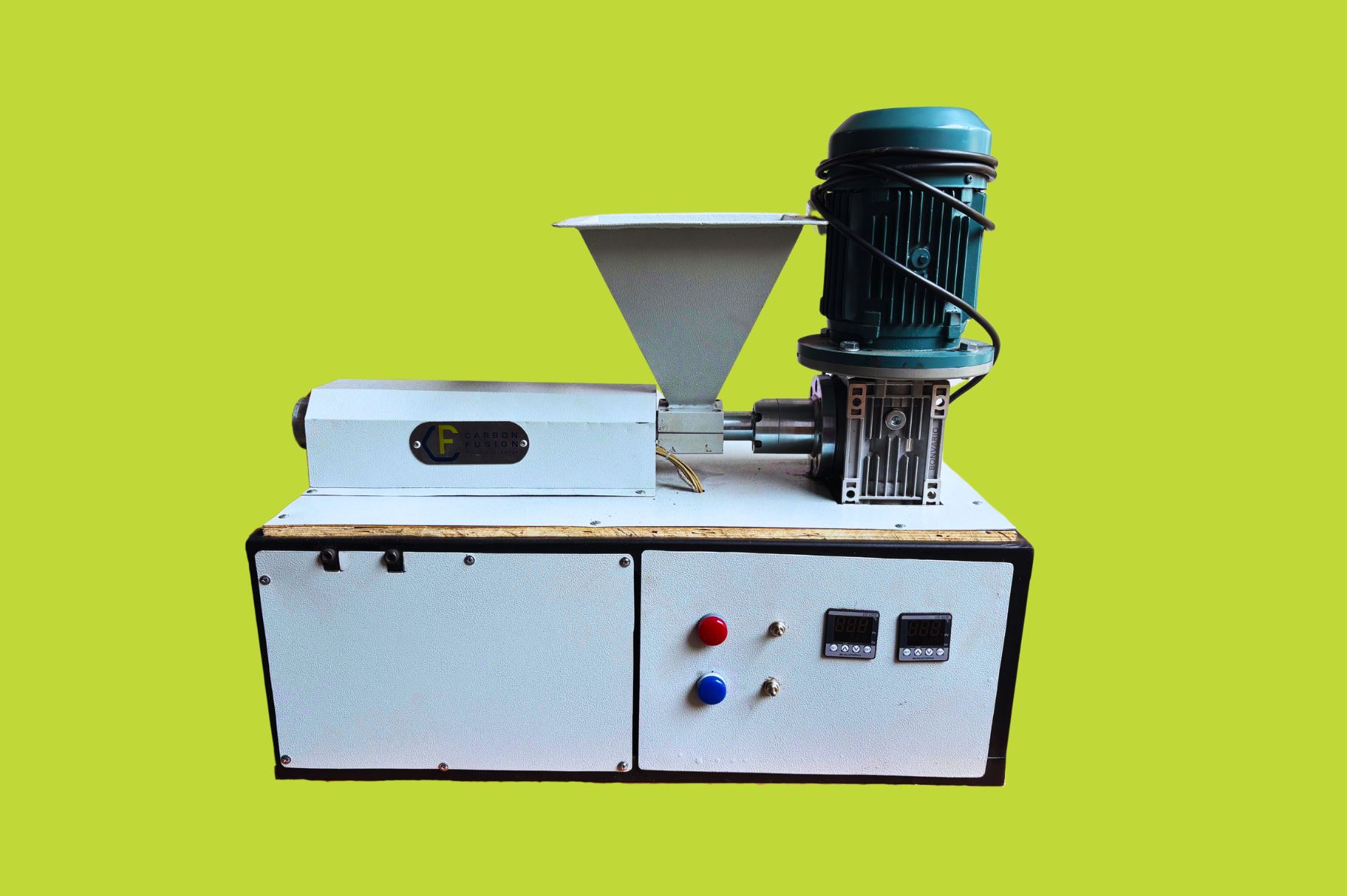

Extrusion Machine (V3)

Specification:

• Motor 2 Hp Single Phase
• Easy to move
• Highly Accurate Compression Screw
• 110 RPM Gearbox
• Plug and Play VFD
• Built according to the precious plastic design
• 240V 10A
• Extrusion compression screw
• Overload protection
• Extra safety measures included

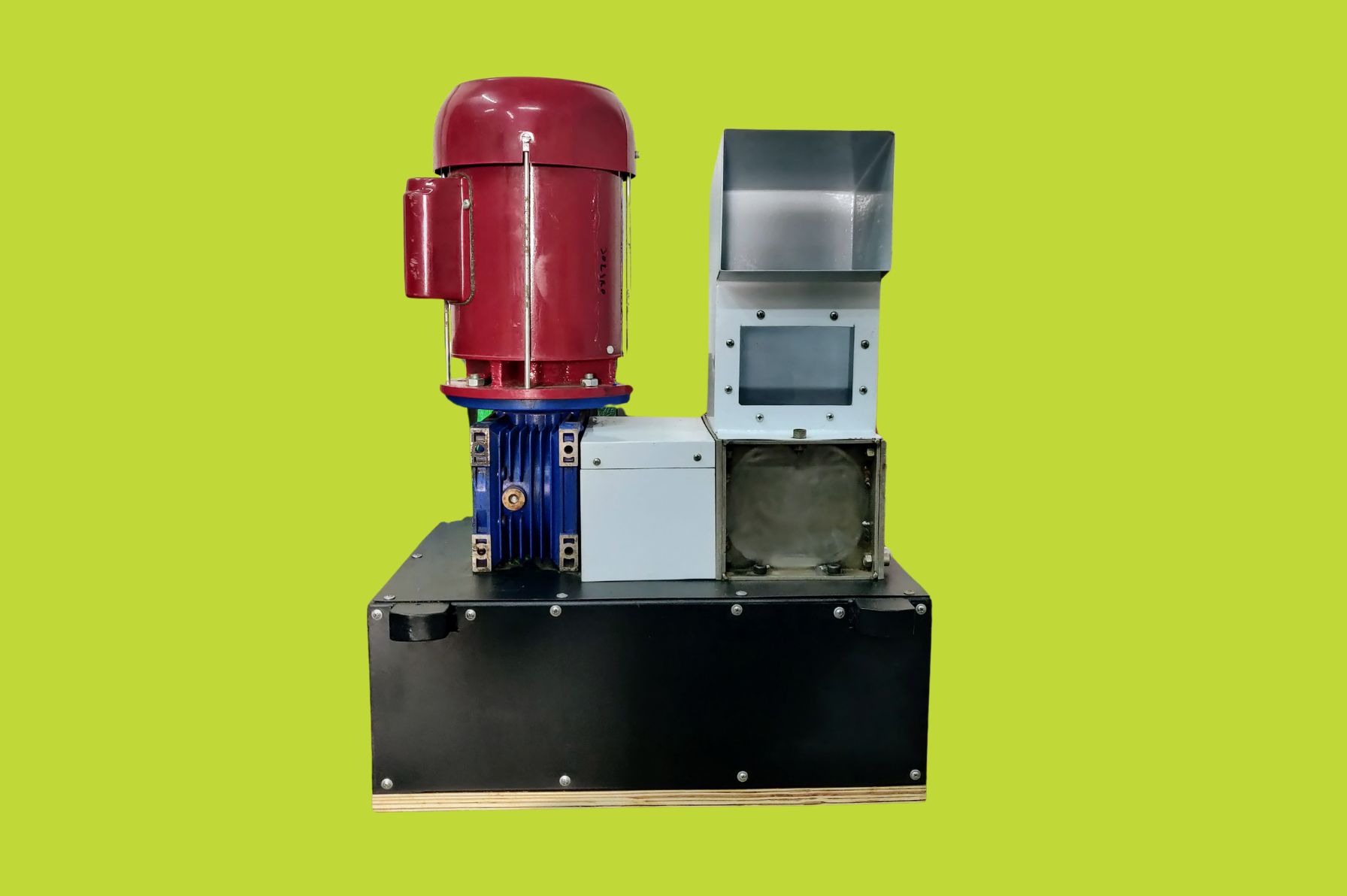

Shredder Machine (V3)

DESIGN PARAMETERS WITH STANDARD SUPPLY:

1. 2 HP Single Motor
2. Gearbox NMRV90 1:30
3. Shredder Body
4. Other Supporting systems

SPECIFIC DATA:

• Single axes Shaft of EN 8 Blades with hardox
• Dimensions: 600x300x1200 mm
• Max. Production Output: Depending upon the material
• Hopper Loader: M.S. Fabricated Hopper
• Structure: MS fabricated heavy‐duty structure made from angles, and channels and Covered with sheet

 Electrical:

• Forward and reverse control with the Emergency button.
• Power supply: Single Phase 220V/ Three Phase 400V/50Hz
• A Multifunction Emergency switch is located on the machine and control panel.
• Power Consumption is 1.5 kW
