The perfect setup to get you started recycling!
This machine can make multiple sheets out of HDPE / PP / PS / LDPE / ABS waste. Each sheet can recycle from 14 to 50 kgs of plastic waste.
14–50 kg Plastic waste recycled per sheet |
16 Heating plates on each side |
Separate Hot and cold press structure |
Water cooling Cold press with faster processing time |
Key features
| CE Certified & Factory Made Automatic Sheet Press 1000 x 1000 + Free Mould |
Faster production Separate Hot and Cold Press Structure for better performance and faster production |
| Cold press Cold Press with Water Cooling System with faster processing time |
Hot press Hot Press with 1000 x 1000 mm Aluminum base attached with plate heaters and a whole supporting heavy-duty structure |
| Size to be manufactured 1050 x 1050 mm Sheets |
Max. sheet output 1 sheet per hour max. |
| Heating 16 Heating plates on each side mounted on aluminium plates to ensure equal distribution of heat |
Pressing system 10 Ton standard Manual Jack at the bottom of the pressing system with a pressure gauge |
| Temperature control Advanced Temperature control panel with power-saving technology |
Preparation table Heavy-duty preparation table with 4 rolling wheels |
| Machine weight and size 450 KG. Machine dimensions: 1250 x 2500 x 1000 (LxBxH) |
Worldwide shipping To the seaport. No Packaging and Handling Cost. |
Mould
Main design components
- Hot Press with 1000 x 1000 mm Aluminum base attached with plate heaters and a whole supporting heavy-duty structure: 1 no
- Separate Hot and Cold Press Structure for better performance and faster production

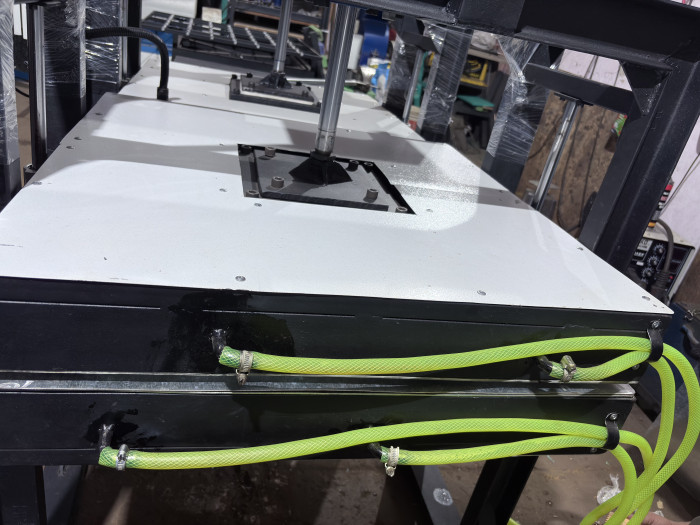

- Cold Press with Water Cooling System with faster processing time
- Heavy-duty preparation table with 4 rolling wheels
Technical data
| Specification | Detail |
|---|---|
| Material to be processed | Recycled HDPE/PP/LDPE/PS/acrylic Grinded Scrap |
| Size to be manufactured | 1050 x 1050 mm Sheets |
| Output capacity | Depending upon the material used. |
| Recommended Mold size | 1050 x 1050 mm, Top & bottom plates and frame. |
| Max. Sheet Output | 1 sheet per hour max. |
| Temperature control | Advanced Temperature control panel with power-saving technology. |
| Total Connected Load | 15* kW (Approx.) |
| Voltage | 3 Phase 415V |
| Machine Weight | 450 KG |
| Machine dimensions | 1250 x 2500 x 1000 (LxBxH) |
Main sheet press
| Specification | Detail |
|---|---|
| Supporting structure | MS Powder-coated. |
| Top & bottom plates | 8 mm aluminium plates. |
| Heating plates | 16 Heating plates on each side are mounted on aluminium plates to ensure equal distribution of heat. |
| Jack | 10 Ton standard Manual Jack at the bottom of the pressing system with a pressure gauge. |
| Rolling mechanism | Standard 4 rolling mechanism to ensure smooth up-down rolling of the bottom plate. |

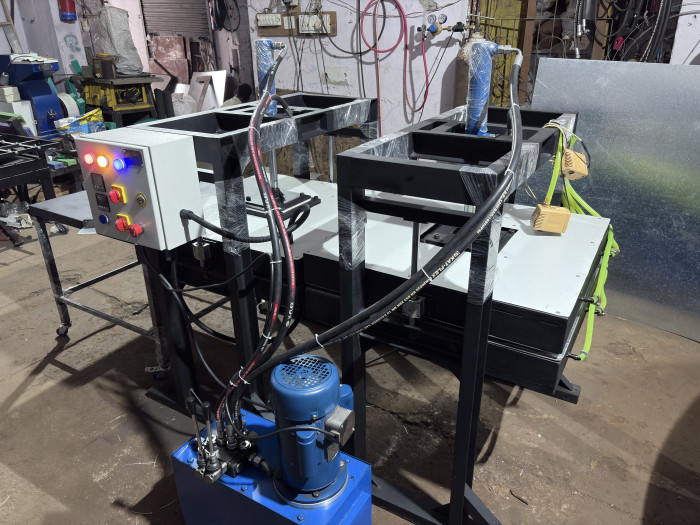

Process control panel
| Specification | Detail |
|---|---|
| Temp. Controllers | PID Controller with Autotuning & dual display (OMRON) |
| MCB | Reputed make MCB in line with every heating zone supply |
| Other Electrical Outfits | Contactors, Synchronization card, standard cord wiring with PVC conduct channel framing. |
| Safety | Phase Synchronizer and Over Voltage Protection as per CE Standard. |
About Carbon Fusion
Meet Carbon Fusion: Your Gateway to Plastic Recycling Fun!
Ready to turn your pile of old plastic into something awesome? Say hello to Carbon Fusion, the perfect desktop extrusion machine to kick off your recycling adventure in style!
Brought to you by The Carbon Fusion—a plucky Indian start-up with a serious knack for turning trash into treasure. Our team of recycling wizards (including one of the brains working since 2018 with some unique solutions) is on a mission to make High-Quality, Affordable recycling equipment inspired by the Precious Plastic Ecosystem for everyday heroes like you.
We're not just about machines—we're about movement. Our gear is spinning, shredding, extruding, and injecting plastic in over 35 countries across 6 continents, and we're just getting started. Have questions? Stuck in a plastic pickle? Our friendly team is here 24/7 to guide you every step of the way.
We ship worldwide and accept payments in multiple currencies — if your country isn't listed or you need a custom invoice, just give us a shout.
Need help or just want to chat? Click that shiny "Contact Seller" button and we'll be right with you.
CARBON FUSION is a registered company in INDIA under VAT(GST) number 09CAUPS1198H1ZU and provides worldwide shipping services.
FAQs
Machine specifications
- Other
- Other
Select the plastic types this item can process.
Not sure about plastic types? Learn more on the Precious Plastic Academy.
- HDPE (2)
- LDPE (4)
- PP (5)
- PS (6)
- 220V - 240V
Safety & compliance
- CE (European Union)
Sheetpress details
Indicates whether a cold press is available or included with this machine.
Cold pressing is an essential step in the sheet pressing process: after heating, the sheet needs to be pressed under pressure while cooling to ensure a flat, even result.
Having a cold press integrated or available with your machine simplifies the workflow significantly. Learn more about the sheet pressing workflow in this Academy article.
