*******************A MEDIUM SIZE BRICK MOULD IS FREE*******************
We provide virtual sessions to run the machine efficiently. Also provides complete technical support, installation, and virtual training for free upon receiving the machine. Additionally, an operating manual and additional 2 years of virtual maintenance are also given.

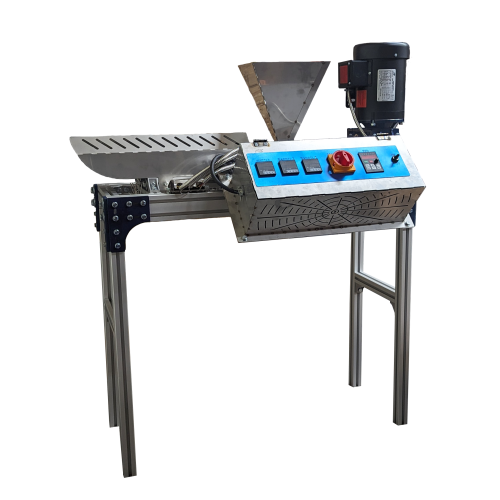

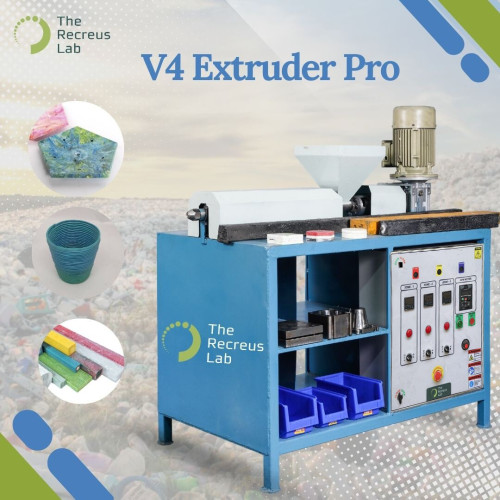

Extrusion Machine Pro(V4)
- DESIGN PARAMETERS WITH STANDARD SUPPLY:
1) 790 mm / 30D / 2 HP Smooth Screw extruder – HDPE/PP/LDPE/PS/PET: 1 no.
2) Process Control Panel synchronized by one master control: 1 no.
SPECIFIC DATA:
- Material to be processed: Recycled HDPE/PP/LDPE/PS Grinded Scrap
- Size to be manufactured: Up to 4ft Length
- Screw RPM: 70 / Max.
- Screw size: L- 790 mm, OD – 30mm
- Barrel Size: L- 578 mm, OD-40mm, ID- 30mm
- Max. Extrusion Output: 20 Kg/Hr.
- Advanced extrusion control with optimized workflow to fill moulds
- Total Connected Load: 8* kW (Approx.)

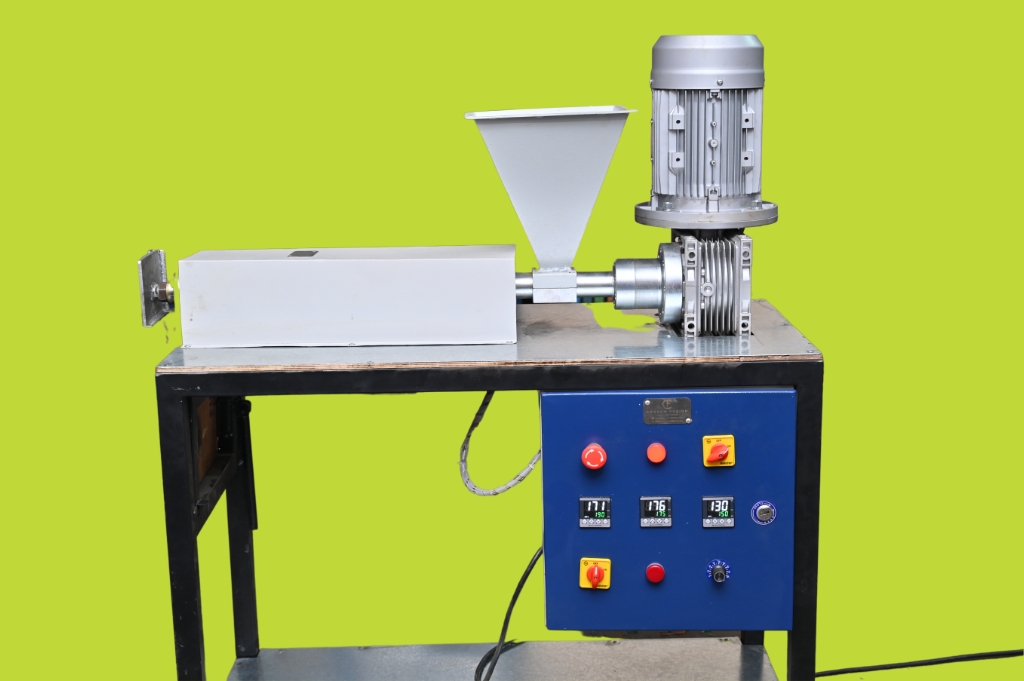

MAIN EXTRUDER:
- Barrel Type: Smooth Feed Barrier type high-speed design
- Screw Barrel Material: EN 41B Nitro alloy steel duly gas nitride
- Gear Reducer: Worm Gearbox with heavy-duty thrust bearing
- Main Motor: AC Motor 3HP With Frequency Drive
- Barrel Heating Zones: 3 Heating Zones (Ceramic Band Heater with Energy Saving)
- Barrel Heating Loads: 4 kW.
- Hopper Loader: M.S. Fabricated Hopper
- Structure: MS fabricated heavy‐duty structure made from angles, and channels and Covered with sheet
PROCESS CONTROL PANEL:
- Temp. Controllers: PID Controller with Autotuning & dual display
- MCB: Reputed make MCB in line with every heating zone supply
- Other Electrical Outfits: Amp. Meter, Contactors, Synchronization card, standard cord wiring with PVC conduct channel framing.
- Phase Synchronizer and Over Voltage Protection as per CE Standard.
International Shipping is Available at the best price
CARBON FUSION is a registered company in INDIA under VAT(GST) number 09CAUPS1198H1ZU and We ship around the globe.
Country of Origin:
India
Dimensions :
100*100*100CM
Weight (KG):
105KG
Domestic shipping to
India:
- One item: €682.00
- Each additional item: €0.00
International shipping to
Everywhere else:
- One item: €682.00
- Each additional item: €0.00
