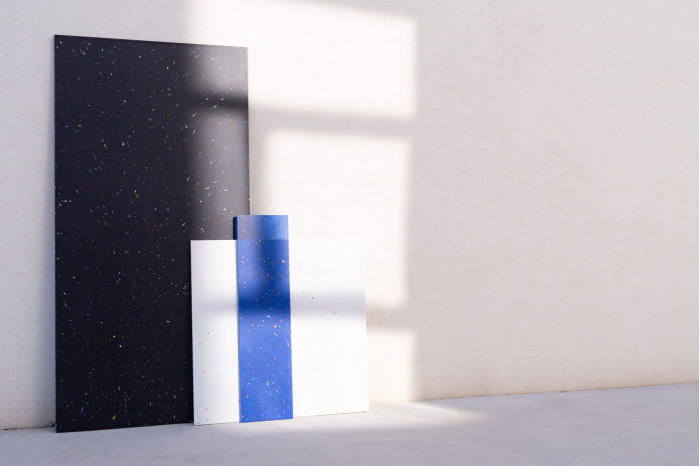

Our panels are made from 100% recycled PET-G and can be universally used in design and architecture – for furniture making, interior design, wall cladding, indoor, outdoor and wet room applications, or for DIY projects. Our materials can be processed with all standard (hand) machines such as circular saws, routers or CNC milling machines. The panels can be bent and thermoformed under the influence of heat. The surface can also be printed and painted and is resistant to households common chemicals.

Available sizes: 2000 mm × 1000 mm in 12, 20 and 30 mm thickness

Technical data:

Property	Method	Unit	Value
Density	DIN EN ISO 1183	g/cm³	1.27
Rockwell hardness	DIN EN ISO 2039-1 ASTM D-785	R-scale	105 – 115
Bending modulus	DIN EN ISO 178	MPa o. N/mm2	1900 – 2300
Flexural strength	DIN EN ISO 178	MPa o. N/mm2	70
Modulus of elasticity	DIN EN ISO 527-2	MPa o. N/mm2	2000 – 2200
Tensile strength	DIN EN ISO 527-2	MPa o. N/mm2	50 – 55
Plug elongation (elongation at break)	DIN EN ISO 527-2	%	40 - 60
Impact strength Izod (notched)	DIN EN ISO 180/4A	kJ/m2	11.5
Charpy impact strength (notched)	DIN EN ISO 179-1/1eA	kJ/m2	7
Charpy impact strength (not notched)	DIN EN ISO 179-1	kJ/m2	NB
Continuous operating temperature	---	°C	65
Temperature range for thermoforming	---	°C	120 - 150
Dimensional stability temperature (HDT A/B)	DIN EN ISO 75-2	°C	72/68
Max. Temperature for short-term use	---	°C	70
Decomposition temperature	---	°C	>280
Coefficient of linear thermal expansion	DIN 53752/ ISO 11359-2	mm/m °C	0,068
Fire behaviour (build- ing product) up to 10mm	DIN 4102-1	Building authority approval	B1
Fire behaviour (build- ing product) 0.8mm-10mm	BP – VO 305/2011 DIN EN13501-1	Classification	B - s1, d0
Biocompatibility (skin contact)	DIN EN 10993-5	Classification	Non-cytotoxic
Food-safe	---	---	yes
