An Injection Machine designed for Production & Education!

About the Sustainable Design Studio

The Sustainable Design Studio is a UK start-up specializing, in producing High Quality and Affordable recycling equipment based on the Precious Plastic Ecosystem. Founded by one of the original designers behind the Precious Plastic V4 Brick, we are always creating new and unique ways to recycle plastic, and with a full-time staff team, we are available 24/7 to help you on your recycling journey. Our Machines and Moulds are already in use in over 35 countries on 6 continents and we look forward to helping you get started.

We offer affordable delivery options to all countries and accept payment in multiple currencies. If you don't see your country listed or seek an invoice in a different currency, feel free to contact us.

For Queries, Pre-Order Support or just a chat send us a message with the "Contact Seller" Button Here.

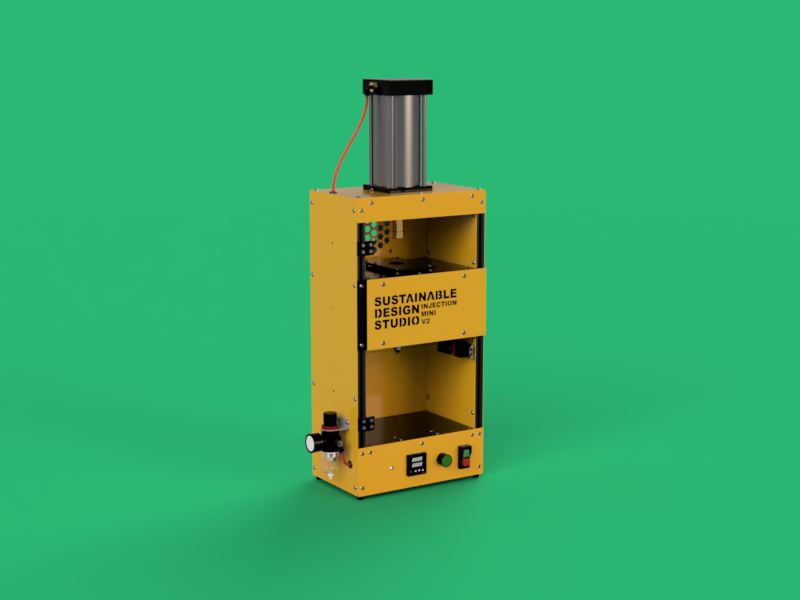

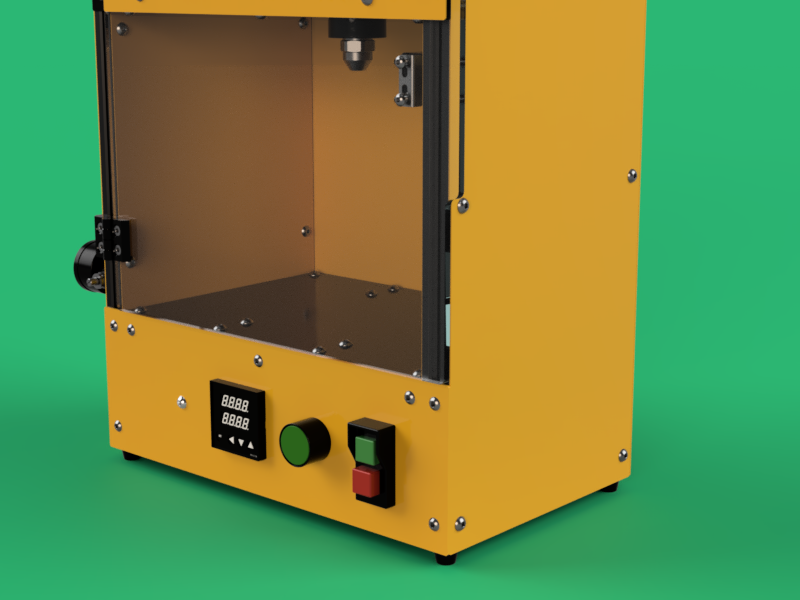

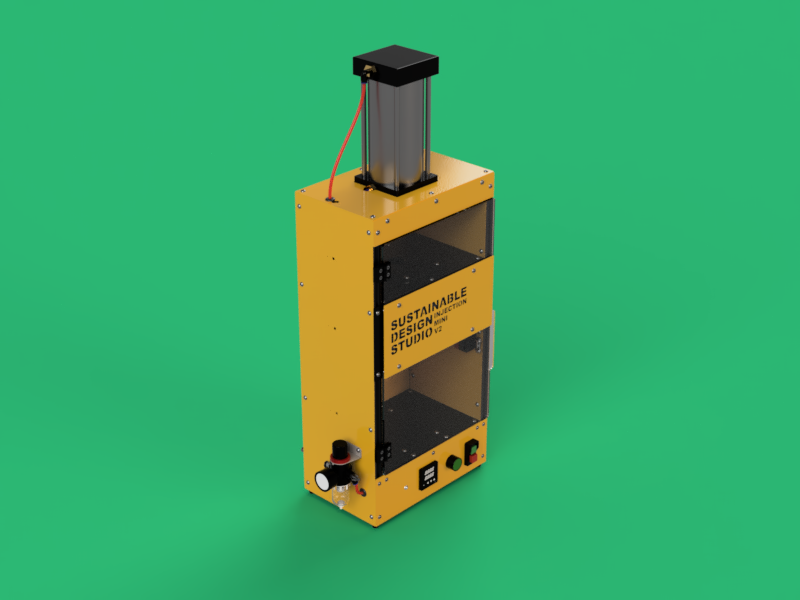

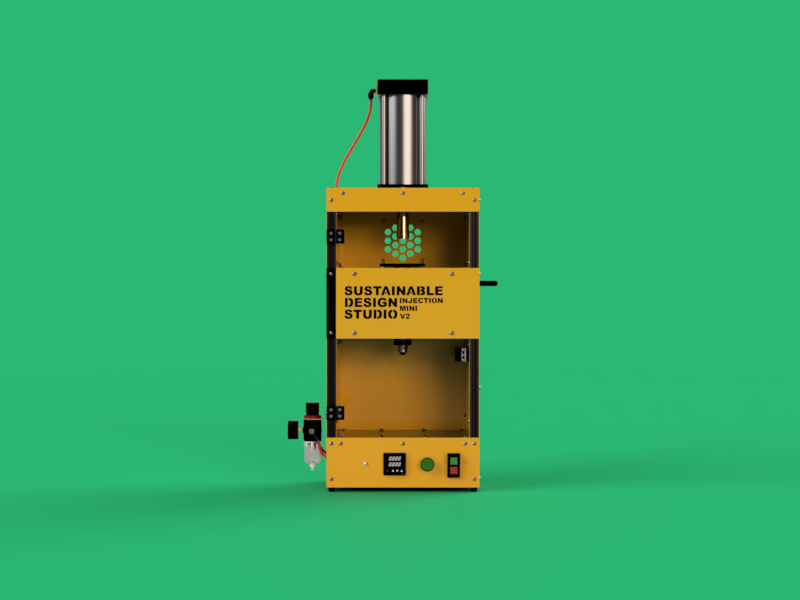

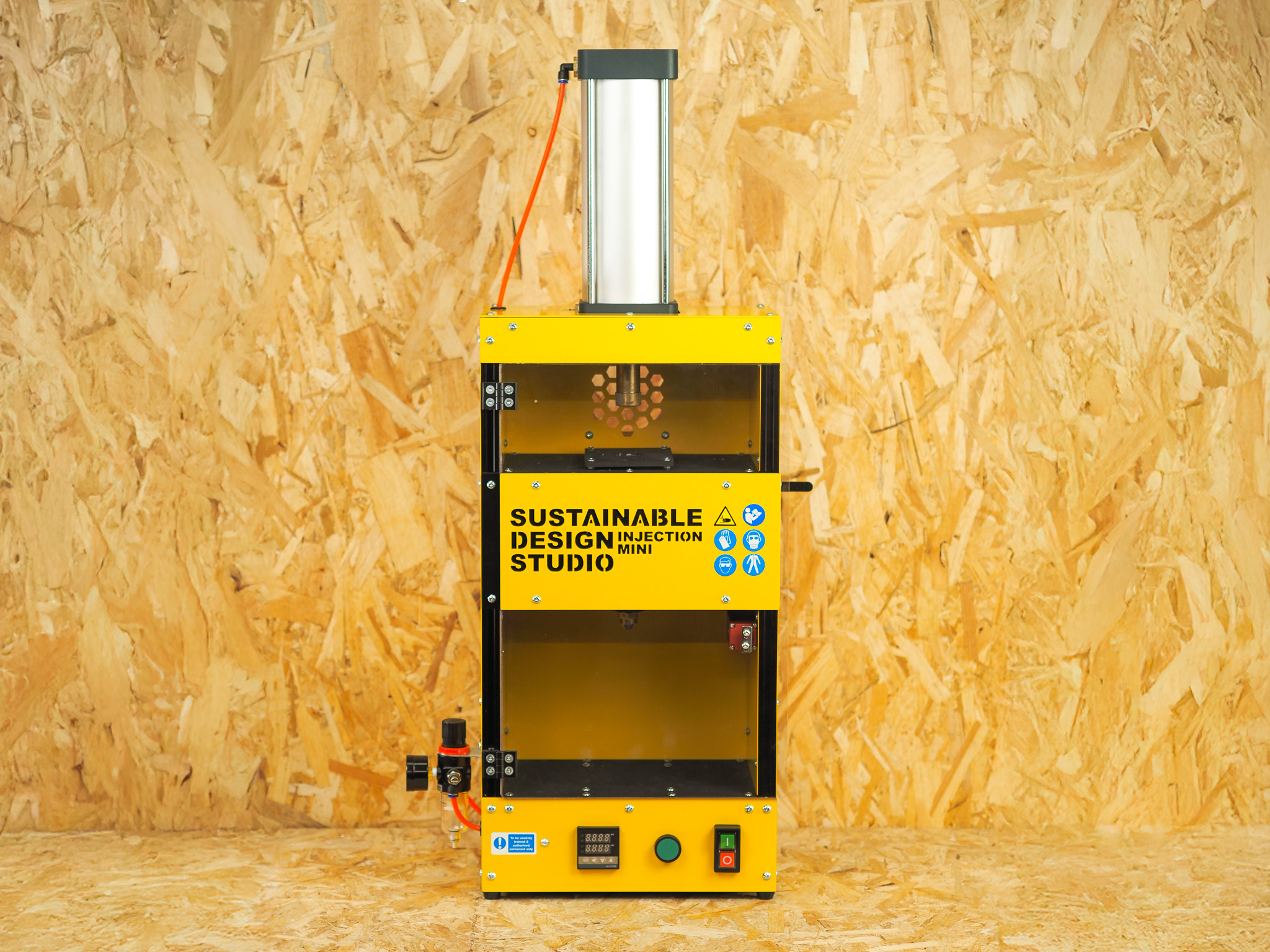

Sustainable Design Studio Injection Mini

The Injection Mini is our cheapest and smallest entry into the world of plastic recycling and injection moulding. The Injection Mini uses a Pneumatic Piston to force molten plastic into whatever mould you choose and has the huge advantage of being extremely small, light and portable. Designed from the ground up for Safety, and Ease of Use, the Injection Mini is Fully Enclosed and has a sensor, to ensure no use of the machine can occur if the side door is open. Its increased barrel size also means you can load bottle caps directly into the machine without shredding, cutting out a step in the process. An adjustable pressure sensor means you can create reliable injections over and over again making it one of the easiest-to-use injection machines.

Perfect for Sustainable Businesses and Educational Facilities.

This machine is shipped in a single box with instructions on how to assemble it into an easy-to-use machine. The whole kit can be easily shipped globally. We also took the liberty to redesign the machine build to make it easier to assemble, maintain and transport for those who want to take the machine to demonstrations or events.

Key Features:

• 6 Months Warranty
• Fully Enclosed Design
• Integrated Fume Extractor Vents

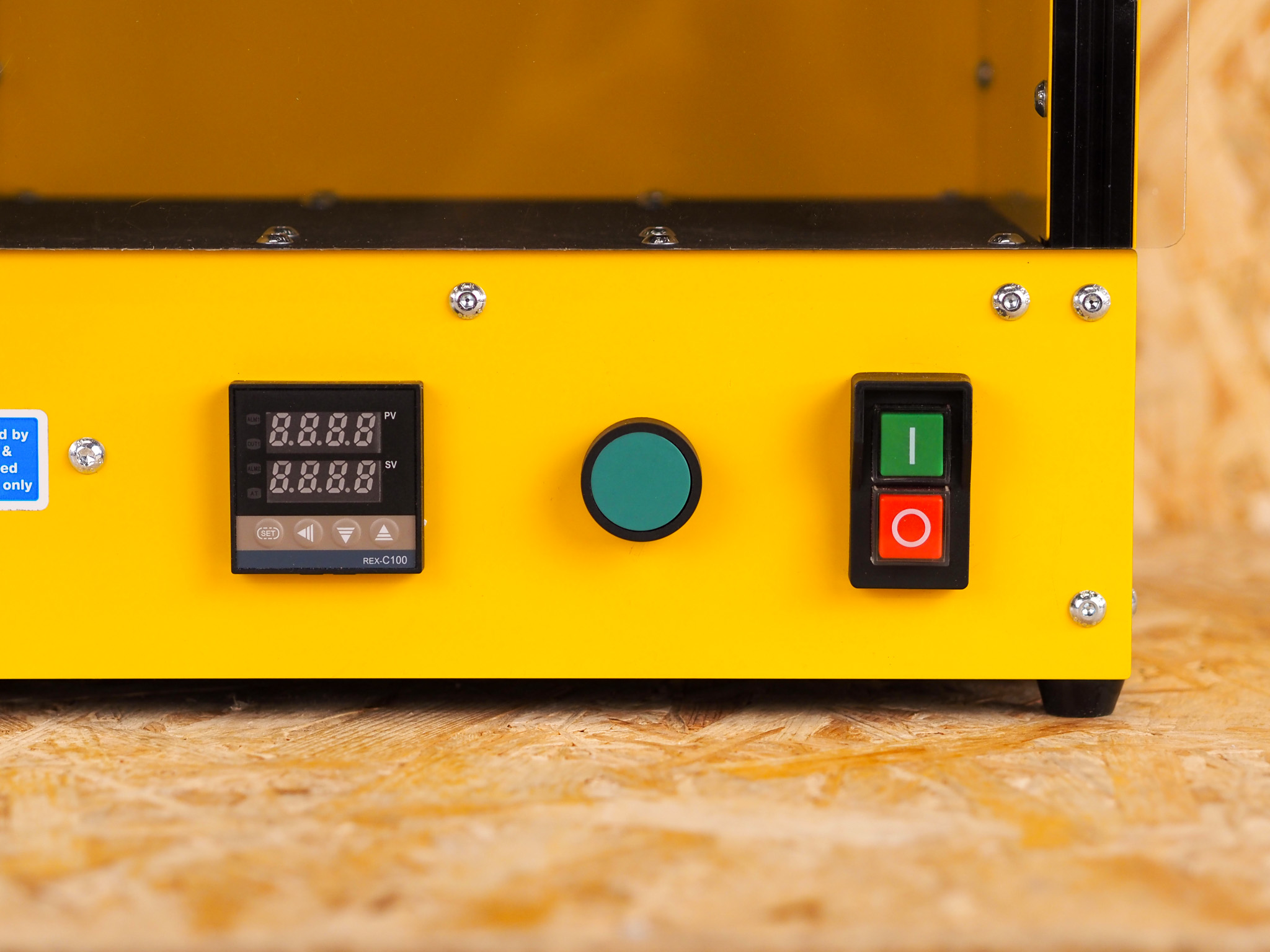

• Pneumatic Injection (Injection with the press of a button)
• High-quality laser-cut parts
• Fully Powder Coated Frame
• Quick Release Mould Mechanism
• Single Heating Zone
• Shipped with Your Country Plug
• Easily Transported
• Comes with a handy Assembly Guide and a User Manual
• Massive 70g Shot Size
• Available in 220v or 110v configurations
• 300W Power
• Fast preheat: 2min
• Max Temperature of 280°c
• Supported materials - Wide range of thermoplastics, including PLA, PETG, HDPE, ABS, PS, PP, and LDPE.
• Machine dimensions: 15×35×90cm (D×H×W)
• Shipping box dimensions: 35kg; 15×35×90 cm

Please note the first batch of these machines will be shipping at the end of July and are selling out fast!

Comes with assembly and user instructions to help get you started quickly!

As an established Precious Plastic Bazar seller, you can buy with confidence of high-quality fabrication and fantastic customer service. Our key goal is to help you get recycling! If you have any questions feel free to contact us via the Bazar messenger here.

Looking for other machines, molds, or just technical support? Check out our other products here.
