Motor Injection Machine

Force without effort:

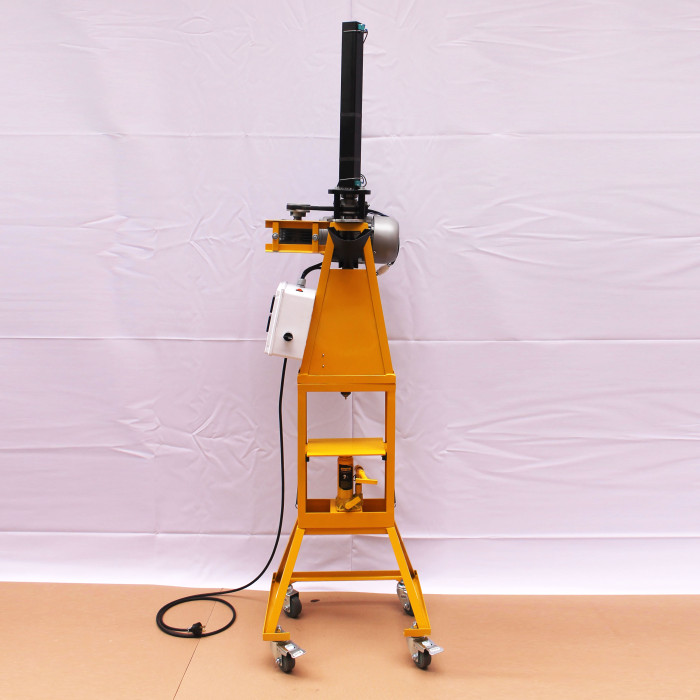

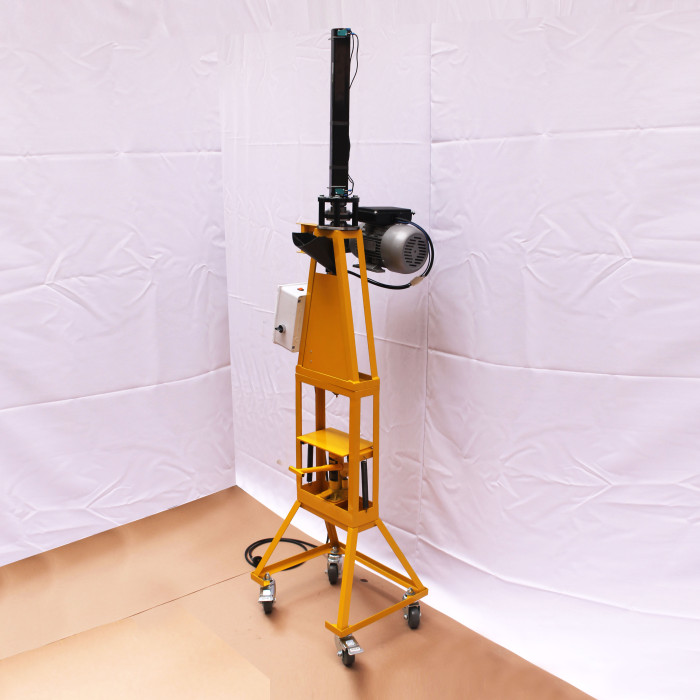

Ideal for large productions, the engine does all the work by moving a screw piston system with a belt. Very compact, the machine is built on three frames bolted together, resulting in a vertical structure. The belt tension can be adjusted to control the pressure during injection. This allows a complete injection to be achieved with few burrs. Equipped with four 3" wheels, it can be moved effortlessly on a flat surface inside the workshop.

Big and super fast:

It has an injection capacity of 120 gr. of plastic (Although I recomend to inject products under 100 gr.) That is like a disc of 11 cm in diameter and 1 cm thick. And it can inject continuously in 5-8 minutes cycles.

Easy mold connection:

The conical nozzle and car jack allow for a faster and easier way to connect the mold to the barrel. Without leaks or pressure losses, this system ensures a reliable connection for a perfect injection.

The machine includes:

   - All functional mechanical parts.
   - Bandheater and all the electronics at 110Volts or 220Volts.
   - 2 Tons Car Jack with returning springs.
   - 1 Reducer 1:10 with pulley and belt.
   - 1 Monophase motor at 110Volts or 220Volts of 1HP (750 Watts).

I'm open to create:

I'm an Industrial Designer passionate on handworking and creating new things. Please contact me for more information or ask for different specifications :)

Notice:

Some import taxes may be charged according to current policies between countries and are not included in the cost of the product.


You can see all the machine details in this video:


Country of Origin:
Colombia

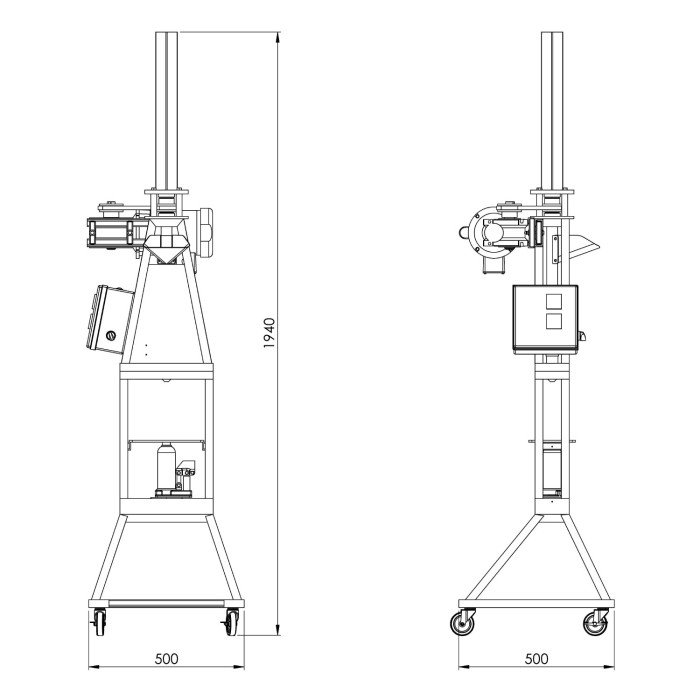

Dimensions :
Heigth: 195; Wide: 50; Large: 50CM
Weight (KG):
45KG
