Lever injection machine in mini size!
Born to be free:

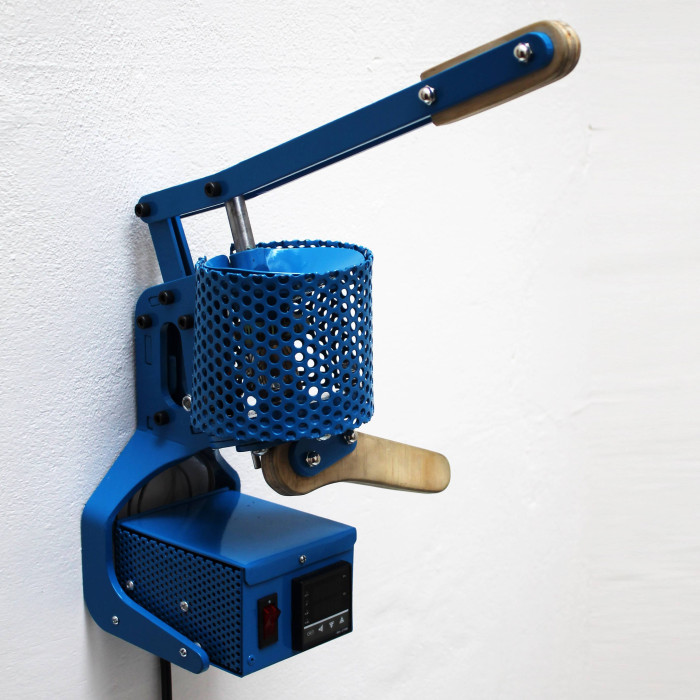

Ideal to take anywhere for educational presentations or recycling process demonstrations. Completely portable, the machine can be used on any table or be attached to a wall or other structure for an easier and faster operation.
Small and super fast:
It has an injection capacity of 5 gr. of plastic. That is like a disc of 4 cm in diameter and 4 mm thick. And it can inject continuously in 2-3 minute cycles.
Variable molds:
For the basic kit, the mold can create any flat silhouette within an area of 4x4 cm, with an engraving on one side. Please check this template. You can upload your silhouette and engraving designs (it can be from a handmade drawing to a vector file) and I will send back a proposal for your approval . The mold can change its shape by changing the silouhette and/or the engraving parts. This means that you can make different products with some basic reassembly of the mold.
For more specialized shapes, like non flat figures, we can develope the mold. I'll be happy to create the mold with you. Please contact me because there can be some price variations.

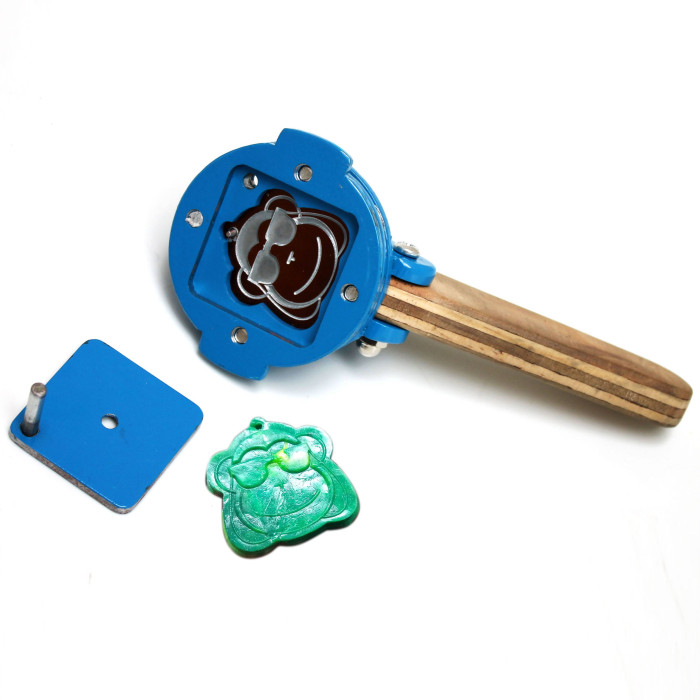

The quick connection mold is really easy to use:
Just insert the mold and turn the handle 45 degrees. After the injection, just turn the handle back and release the mold. You will need some basic side tools like pliers and a spatula for the demolding process.
Different types of plastic:
Works great with PP, HDPE and LDPE. Other thermoplastics that melt under 200°C may work too.
The basic kit includes:
- All functional mechanical parts.
- Bandheater that reaches up to 205°C (110Volts or 220Volts)
- Temperature control electronics (110Volts or 220Volts)
- Quick connection mold with flat silhouette(s) and engraving(s)

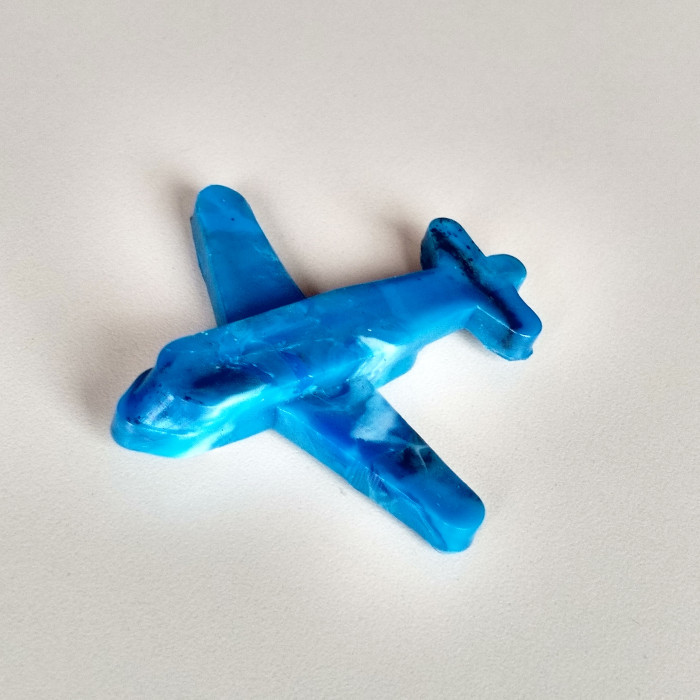

- Injected product test/sample(s)
I'm open to create:
I'm an Industrial Designer passionate on handworking and creating new things. Please contact me for more information or ask for different specifications :)
Notice:
Some import taxes may be charged according to current policies between countries and are not included in the cost of the product.

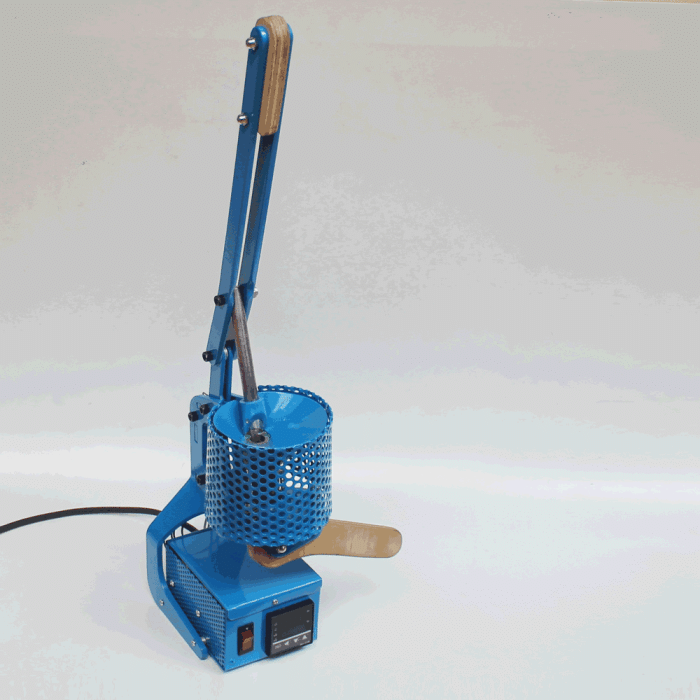

You can see the machine working in this video:
