Meet Carbon Fusion: Your Gateway to Plastic Recycling Fun!
Ready to turn your pile of old plastic into something awesome? Say hello to Carbon Fusion, the perfect desktop extrusion machine to kick off your recycling adventure in style!
Brought to you by The Carbon Fusion—a plucky Indian start-up with a serious knack for turning trash into treasure. Our team of recycling wizards (including one of the brains working since 2018 with some unique solutions) is on a mission to make High-Quality, Affordable recycling equipment inspired by the Precious Plastic Ecosystem for everyday heroes like you.
We're not just about machines—we're about movement. Our gear is spinning, shredding, extruding, and injecting plastic in over 35 countries across 6 continents, and we're just getting started. Have questions? Stuck in a plastic pickle? Our friendly team is here 24/7 to guide you every step of the way.
We ship worldwide and accept payments in multiple currencies — if your country isn't listed or you need a custom invoice, just give us a shout.
Need help or just want to chat? Click that shiny "Contact Seller" button and we'll be right with you.

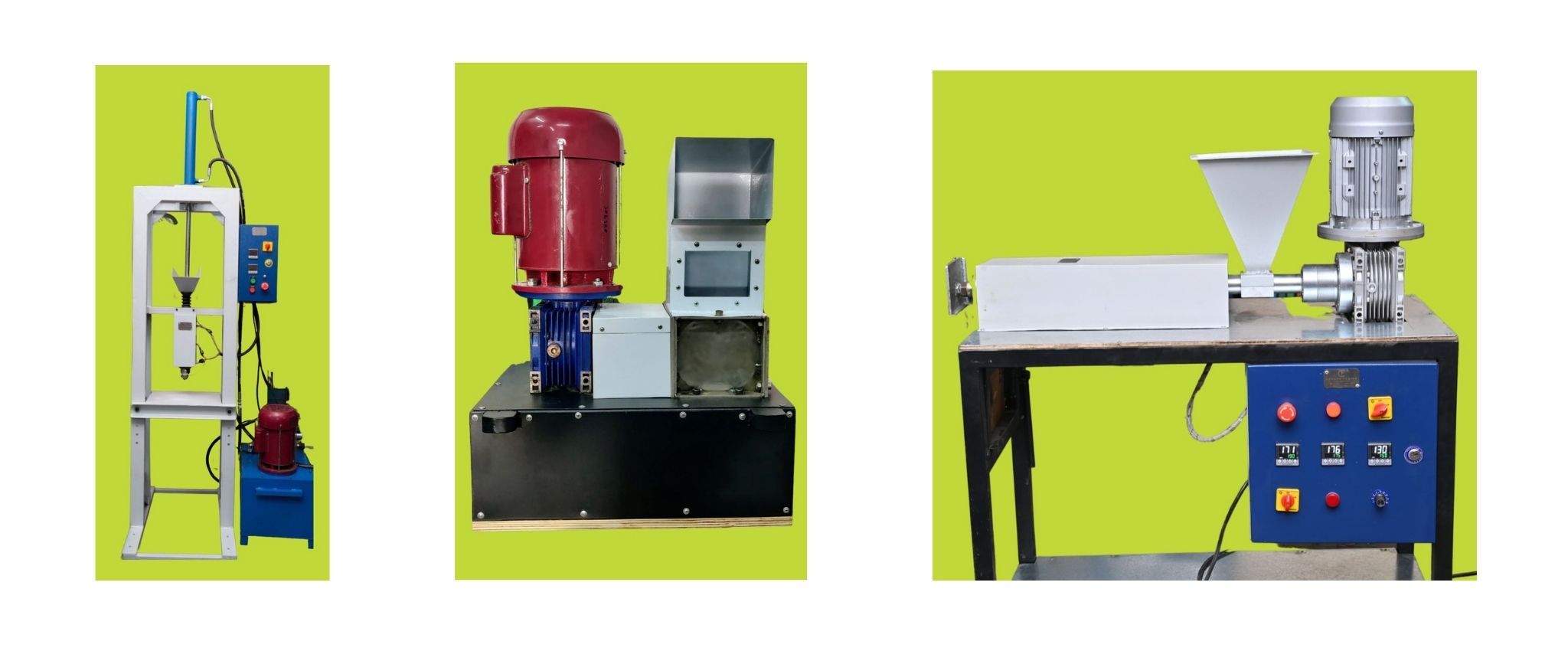

Combo Unit - Sheet Press Machine & Extrusion (V3)
We provide virtual sessions to run the machine efficiently. It also offers free complete technical support, installation, and virtual training upon receiving the machine.
Product highlights
|
30 × 30 cm
Sheet press setup
|
3 Ton
Sheet press jack
|
3–25 mm
Sheet output (tested)
|
8 kg/hr
Extrusion output
|
30 CM Hot press + Cold Press Setup + Free Mould (CE Certified & Factory Made)
It also includes a free mould of 12 mm thickness.
Sheet Press Machine (30 × 30 cm)
Specifications
| Specification | Details |
|---|---|
| Working area | 350 × 350 × 120 mm (hot press and cold press) |
| Aluminium plate thickness | 8 mm |
| Temperature controllers | 2 nos. (Multispan) |
| Power supply | Single phase, 220 Volt |
| Initial power load | 2 kW (approx.) |
| Pressure | 3 ton jack |
| Supporting shafts | 4 supporting shafts with linear bearing |
| Output | 3–25 mm sheet (tested) |
| Frame | Heavy frame for stability |
Sheet press features
- This machine can make multiple sheets from HDPE / PP / PS / LDPE.
- A custom-sized machine is also available.
- Free mould of 12 mm thickness included.
Extrusion Machine (V3)
Extrusion Basic V3: The Plastic-Extruding Beast in a Box
Got plastic? We've got your solution. The Extrusion Basic V3 is built for serious extruding—filament through 8 kg per hour of your unwanted plastic bits and bobs. That's your household waste, failed 3D prints, and all those random caps and containers turned into filament or beams, and many more.
But wait, there's more! This powerhouse comes fully loaded with:
- Safety switches.
- Auto jam detection.
- Ships in 1 compact box with an assembly guide.
- Built for easy assembly, maintenance, and travel—suitable for demos or makerspaces.
- Designed with a desktop footprint.
Extruder specifications
| Specification | Details |
|---|---|
| CNC parts | CNC-made precision parts |
| Finish | Powder-coated frame |
| Screw size | 25 × 510 mm |
| Speed controller | VFD (speed controller) |
| Motor | 1.5 kW motor with your country's plug |
| Power | 220 V |
| Noise level | 30 dB |
| Supported plastics | PLA, HDPE, ABS, PS, PP, LDPE |
| Output | 8 kg/hr with 6 mm feed |
| Dimensions | 45 × 96 × 71 cm (Depth × Width × Height) |
| Packaging | Shipped in boxes; no pallets or forklift required |
What's in the box?
A friendly assembly guide and a user manual.
Shipping details
- Free worldwide shipping till the seaport.
- No packaging and handling cost.
Machine specifications
- Type D: India
- 220V - 240V
Safety & compliance
- CE (European Union)
