The Mini 6 Shredder - Cost Effective "Handy dxf download Design and very simple to build" for those engineers  looking for something special and very simplistic with quality. Motor driven or crank handle operation.

ModuMaker offer ready-made digital files for customers to CNC cut then build from your cutting service. Please be aware that no delivery of the physical item will occur. After payment, Upon your order placed and confirmed, you will immediately receive your ordered digital Zip files sent to your supplied Email Address to cut, then build yourself from these files. These designs offered allow for budding engineers or teaching - educational projects, business opportunities for entrepreneurs aiming to establish a new substainable workshop for growth. Specifically designed to facilitate your capability for selling these products to a global market, expanding your reach into worldwide sales.

Overview: The simple 6 Shredder is a unique, cost-effective solution. simple to build and can be operated by use of a crank handle, reduced KW motor or torque drill with variable speed and high torque setting allowing the operator to set the RPM or NM requirement.

Dimensions:
Overall shaft length: 172mm
Width: 164mm
Height: 60mm
Cutting area: 140mm x 80mm

User-Friendly Assembly:
The simple 6 is designed for easy assembly, similar to IKEA flat-pack furniture. All parts bolt together seamlessly, requiring only basic engineering skills.

Robust Design:
Constructed with 12mm, 10mm, and 6mm steel plate plus a couple of dxf shims, ensuring durability and strength. Spur gears design CNC/plasma or laser cut steel involute design. slide fit dxf designed gears.

Versatile Operation:
Compatible with a variety of motors, including small motors, torque drills, and stepper motors (Nema 42 - 48). Hand ratchet operation with flexible wrench possible. crank handle dxf design included.

Motor: Recommended single-phase 1kW RPM 1800 motor with 30:1 worm gear/gearbox for shaft rotation and excellent torque (180+Nm).

Shafts drawings are included.

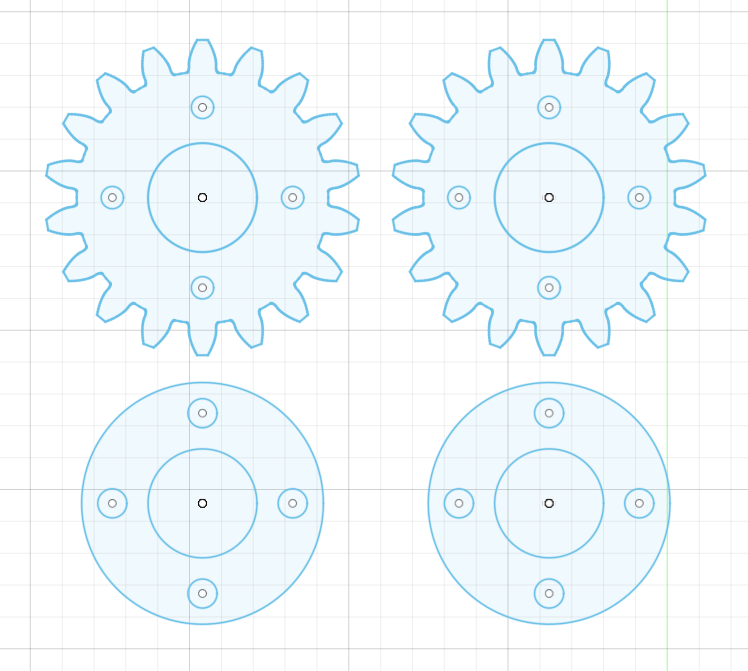

dxf Spur gear Involute gears x 2 - shaft slide fit -17.20mm.

Shaft spacer hex are slide fit.NO WELDING REQUIRED. BOLT TOGETHER DESIGN.

ASSEMBLY
The side and end plates are drilled and screwed together, this is to allow - dismantling the shredder to adjust or sharpen the blades. The holes in these parts are accurately placed to keep everything lined up and it is also important that everything is square and true.

The end plates are sized 1mm longer than the total stack up of all the blades and spacers to allow for a small amount of clearance and prevent binding (79mm vs 78mm).

The lasercut diameter pockets for the bearings allow a press fit for the bearings.

The 19mm hex shaft have a sliding fit inside the inner bearing race tolerance fit. Hex spacers and teeth are slide fit as shown in the sketches above.

surfaces may need cleaning for good fitment of teeth and fixed teeth. involute gear collar is boltyed to the 10mm gear to allow linked rotation.

This simple 6 is fully functional and operational once cut. it is a very simple build and i have included assembly word doc in the zip folder.

PDF files are included for a modular build.

• Motor and gearbox calculator is included.
• Shaft Drawings included
• The drawings are designed in the metric system
• Image folder to assist this simple design.

Your Machine can be spray painted or powder coated depending upon your choice of colors for business brand, your product launch or your educational campaign. Consider the impact of color branding and how the improvement of coating will bring the shredder alive with color branding impact. Colors evoke emotions, moods, and feelings. So, spray away and bring the design alive to who you are inside.

Important Information About Your Purchase

This is a Computer Aided Design item, meaning there is no physical shipment delivery involved. Upon completing your payment, you will instantly have access to the zip product you've purchased sent to your Email instanly on confirmation of the order process.

You are welcome to use these files to create and sell any physical products from this design. Please note that the digital files and the dxf design within them cannot be resold or redistributed. This design has a excellent re-sale value, once cut, built and offered to the worldwide substainable community.

If you have any questions or would like to discuss ideas, even a cutter you can chat with directly, don’t hesitate to message me. I’m happy to help
