NEW AND UNIQUE BEE TWIN SHAFT SHREDDER - CRUSHER - GOLD EXTRACTOR - PLA, ABS, ASA, PETG, PET POOPER ! - 3 rotation shear blades design plus new 7 Blade shear rotation 5mm thickness: Premium Quality Design Engineering DIY project. Images shown are an example for this DIY project.

ModuMaker offer ready-made digital files for customers to CNC cut then build from your cutting service. Please be aware that no delivery of the physical item will occur. After payment, Upon your order placed and confirmed, you will immediately receive your ordered digital Zip files sent to your supplied Email Address to cut, then build yourself from these files. These designs offered allow for budding engineers or teaching - educational projects, business opportunities for entrepreneurs aiming to establish a new substainable workshop for growth. Specifically designed to facilitate your capability for selling these products to a global market, expanding your reach into worldwide sales.

The BEE
Introducing the BEE DXF complete design files to complement various shredding project needs. This new download includes option for Gold Extraction or even 3D printer recycling operators. The rotation blade teeth are engineered for shredding at a 5mm thickness. NEW and only one of its kind product as a high-quality DXF design. the BEE you cut and build is perfect for all types of shredder - crusher plus recycling PLA, ABS, ASA, PETG, PET operations.

Overview: The BEE is a unique, cost-effective solution. it offers tab slot fit tolerance features, M12 plus M10 threaded rods for compression to tab slots in this modern design, perfect for large scale shredding tasks and peice of mind when undertaking any maintenance needs during down time. 375mm straight hopper design included.

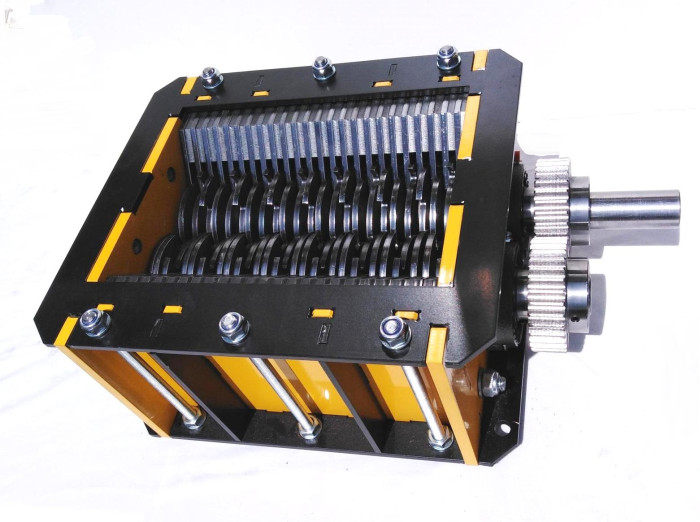

Dimensions of BEE design when CNC cut and fully built:

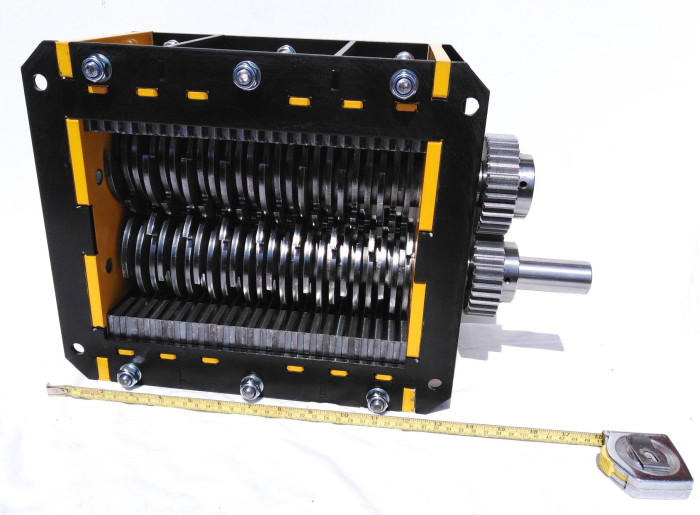

Overall shaft length: 454mm
Width: 290mm
Height: 162mm
Cutting area: 262mm x 182mm

User-Friendly Assembly:

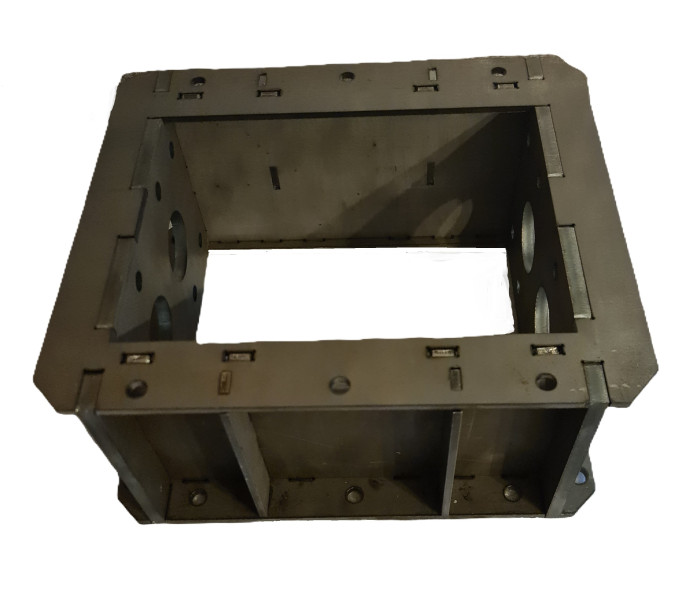

The BEE is a Modular is design for easy assembly, similar to IKEA flat-pack furniture. All parts slot together seamlessly with compression of threaded rods and nuts, requiring only basic engineering skills.

Robust Design:
Constructed with strong plates, ensuring durability and strength. Involute gears design CNC/plasma or laser cut steel or Stainless Steel included. these gears are cut at 10mm x 2 with a 10mm collar. 4 x M8 bolts compress the gears together. only a drill hole is required in the top of the collar to secure gear in position on shafts. M6 x 2 grub screws - Gears can be cut from the dxf design or purchased online.


Motor Example: Recommended single-phase 3kW RPM 1800 motor with 30:1 worm gear/gearbox for shaft rotation and excellent torque (350+Nm).

What’s Included in your zip folder
DXF files for the complete build

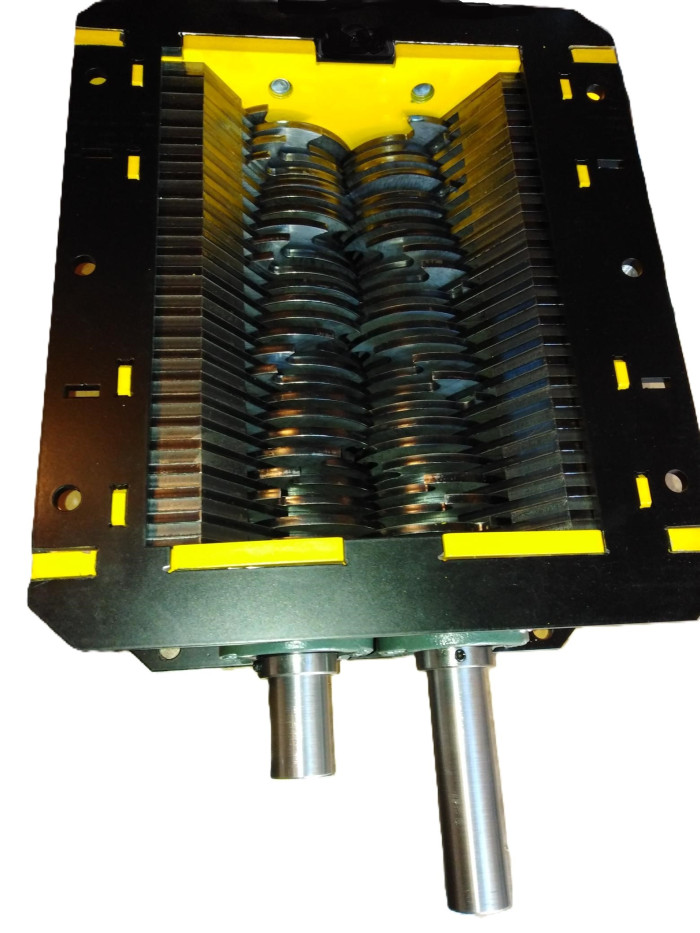

3 + 7 cutting shear blades with 24 rotating teeth on each shaft.

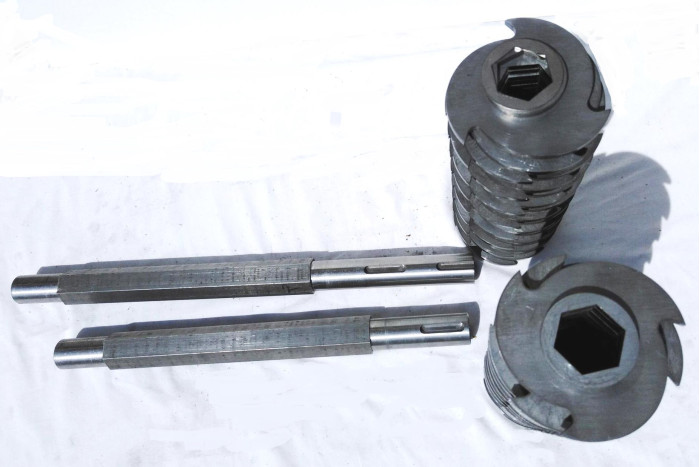

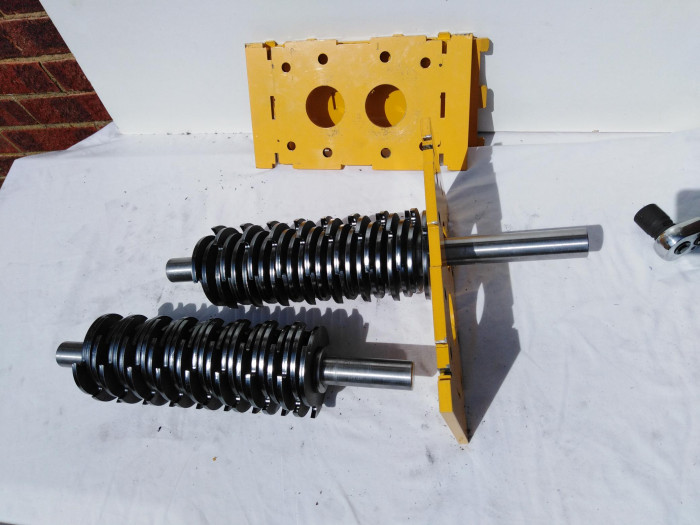

Drawings for hex shafts (32mm hex turned at 30mm for 4 x UCFL 206 bearings).
A folder showing My cut plus build images to assist your build if required.
Extra designed tolerance shims included to adjust to your project needs.
Motor and gearbox calculator is included for Ratio, power Nm.
The drawings are designed in the metric system
PDF parts list and parts measurements.

For building this design you will need to purchase.
M12 - M10 Threaded rods and nuts. 2 x 6mm gear to shaft grub screws. Cheap at your local supplier.

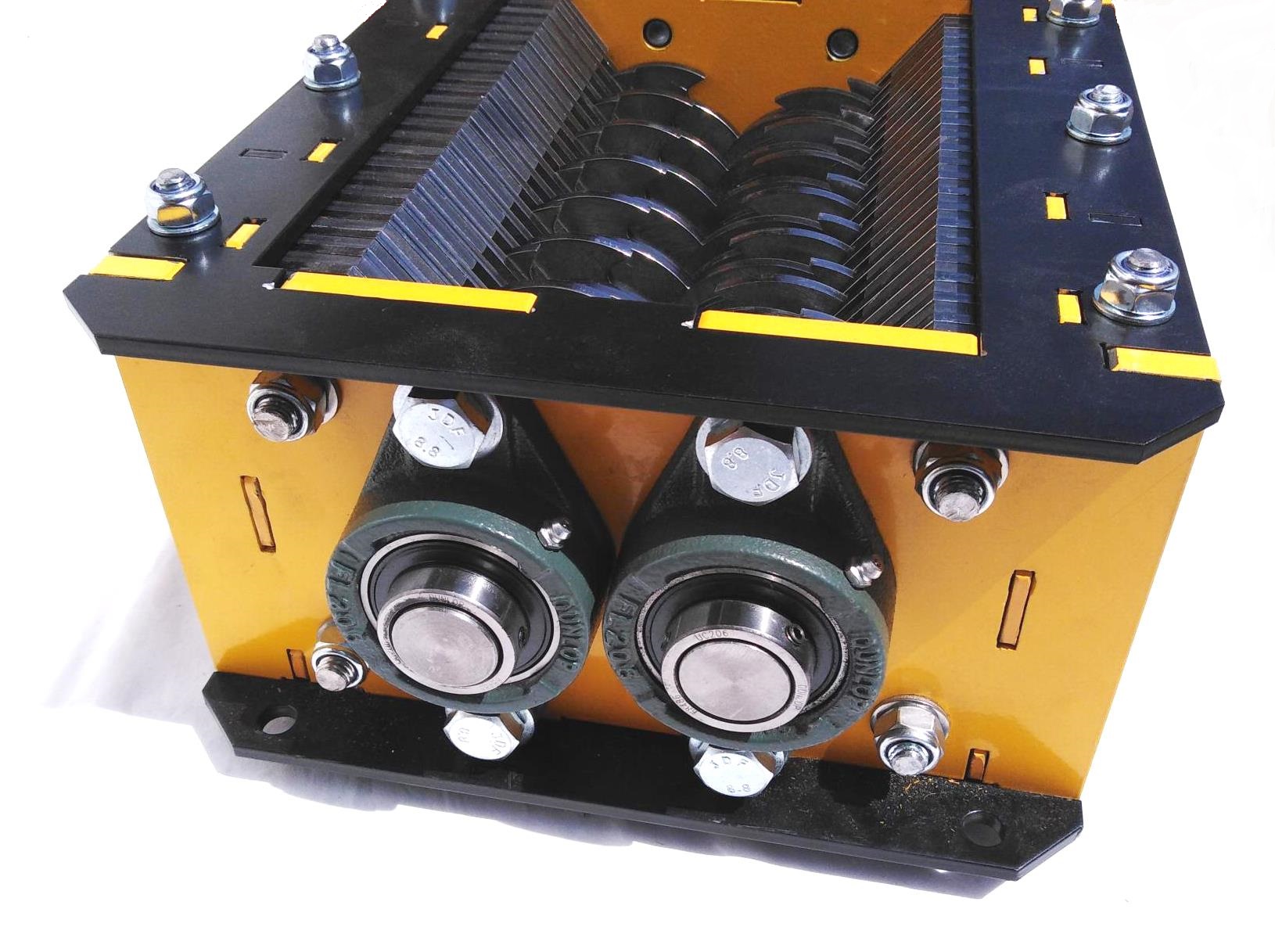

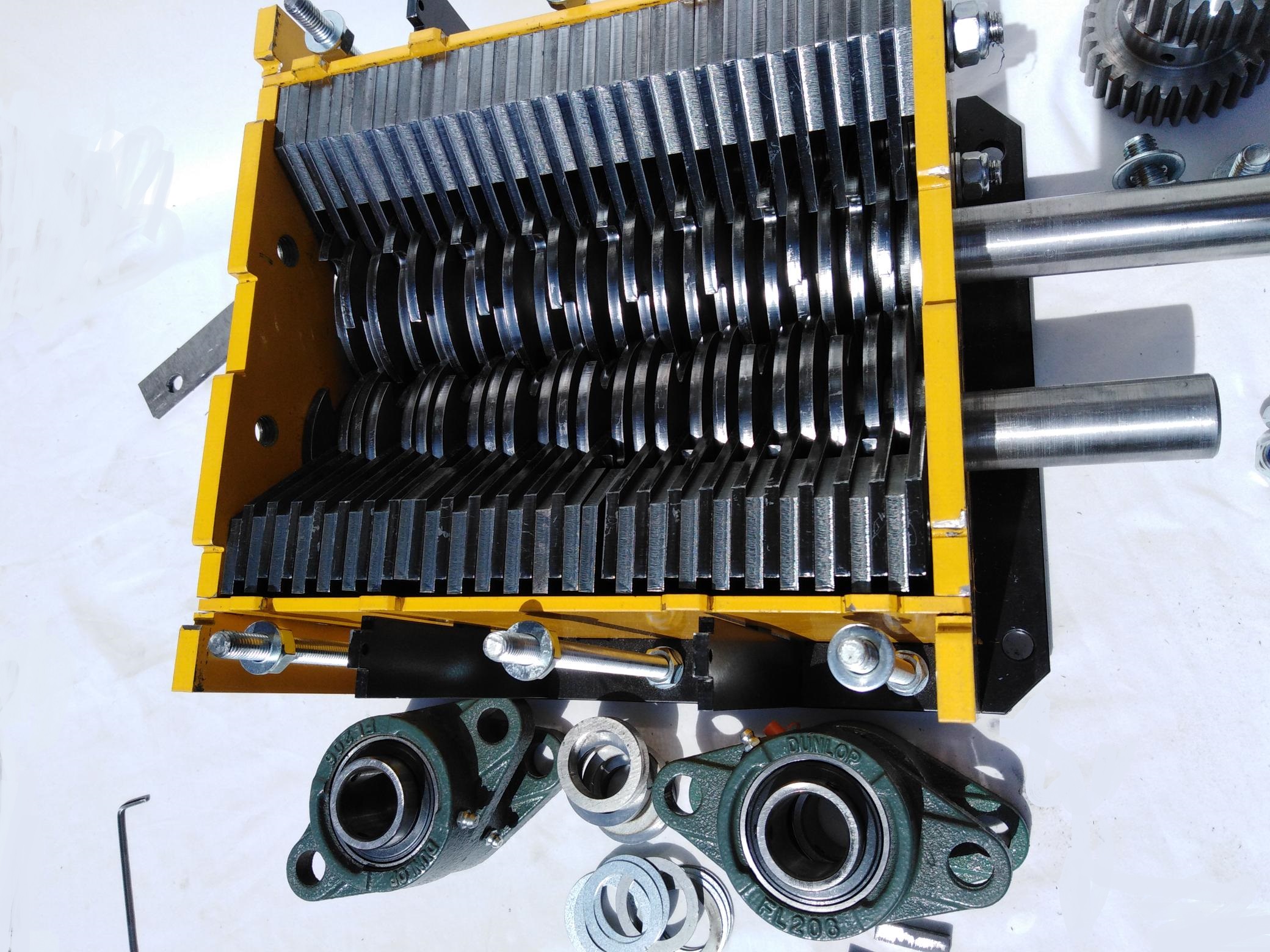

4 pre-greased bearings [UCFL 206]. cheap to purchase online like ebay. M14 x 4 Bolts 25mm long.

Weight KG when DXF files have been cut and fully built - 43

Simplicity of assembly/disassembly for maintenance needs once you cut this design. All DXF files are ready to go - send the file to an CNC plasma, laser, waterjet cutting company or workshop cutter. example is ebay.uk laser cutter service.

Your Machine can be spray painted or powder coated depending upon your choice of colors for business brand, your product launch or your educational campaign. Consider the impact of color branding and how the improvement of coating will bring the shredder alive with color branding impact. Colors evoke emotions, moods, and feelings. So, spray away and bring the design alive to who you are inside.
