The Mini 7 Blade Design for your project - Affordable Cost and Quality Engineered shredder, with option to use 2 or 3 cutting blade version. Single Shaft drawing design included and at perfect tolerance for rotation.

ModuMaker offer ready-made digital files for customers to CNC cut then build from your cutting service. Please be aware that no delivery of the physical item will occur. After payment, Upon your order placed and confirmed, you will immediately receive your ordered digital Zip files sent to your supplied Email Address to cut, then build yourself from these files. These designs offered allow for budding engineers or teaching - educational projects, business opportunities for entrepreneurs aiming to establish a new substainable workshop for growth. Specifically designed to facilitate your capability for selling these products to a global market, expanding your reach into worldwide sales.

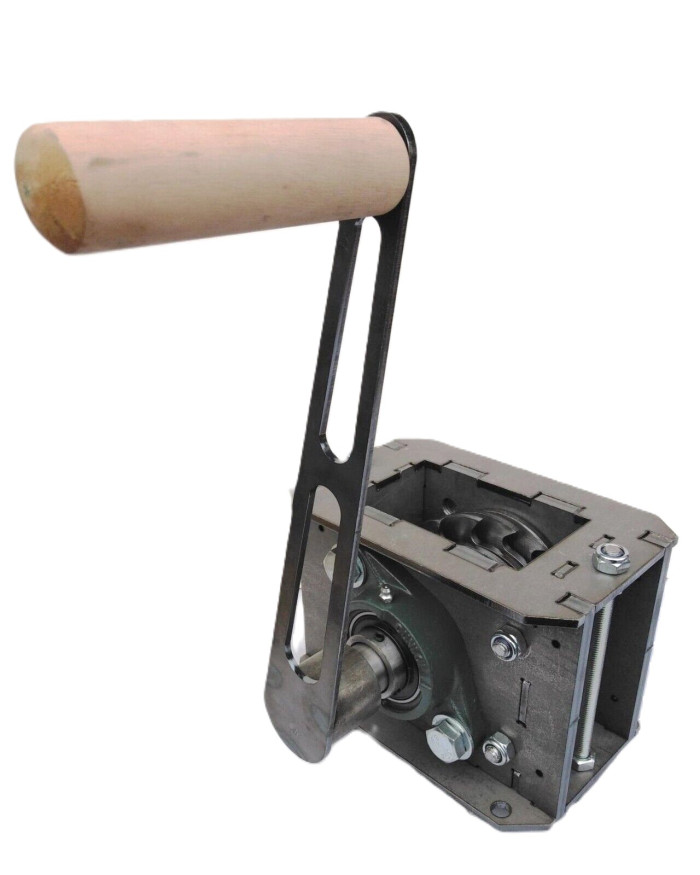

This simple to build modular Mini 7 blade can be operated by use of a crank handle, reduced KW motor or torque drill with variable speed and high torque setting allowing the operator to set the RPM or NM requirement. Pedal power is also used by customers on various designs.

For building this design you will need to purchase.

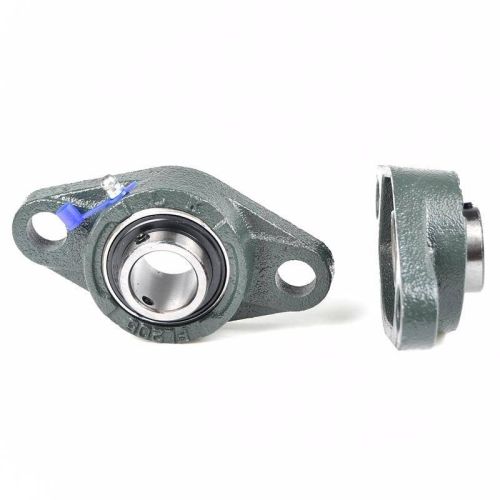

UCFL 206 30mm slide fit Bearings are not included but can be cheaply purchased from many websites online.
M10 Nuts, M10 threaded rod and the 2 x M14 bearing bolts are all thats needed in this design as a parts list can be purchased from Ebay.

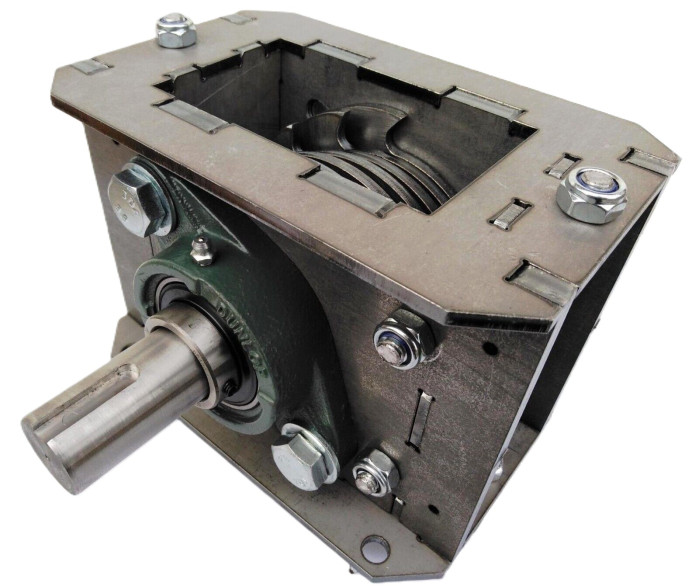

7 blade Shredder is designed to be clamped/compressed/Bolted together with positioned tabs

7 blade Dimensions when cut and built:
Shaft length 225mm X box is 210mm (wide) X 145mm (High) Box Cutting Area: 139mm x 74mm and Teeth are 5mm thickness for Granulation of 2 or 3 cutting blade.

Weight in KG when lasercut - 8

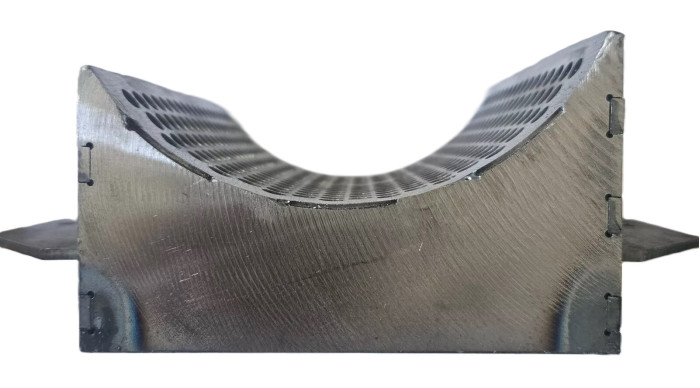

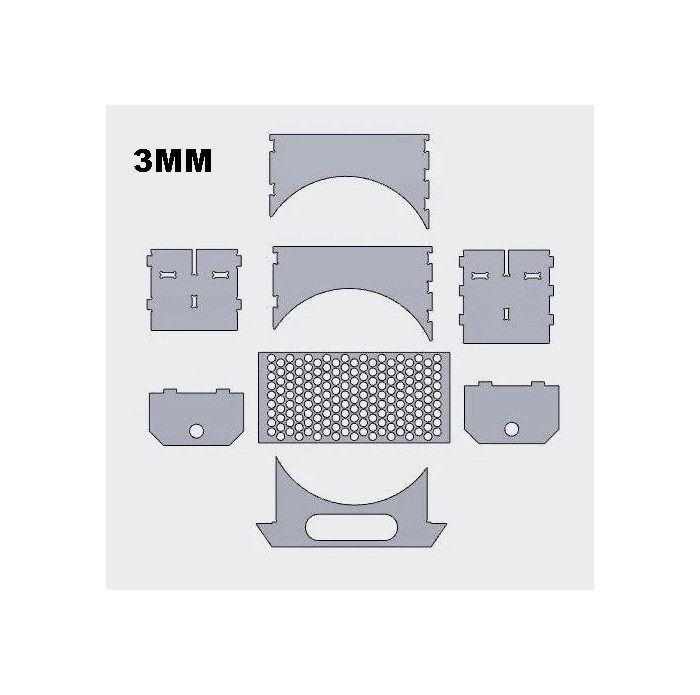

Sieve frame/6mm mesh are within design folder if you require to cut one. The sieve has been fully re-designed to allow ease of handling and fitment into the granulation area. Sieve assembly is much stronger with safety as a factor for operators.   A Handle is added to the sieve frame for added safety. The sieve is the only part of the design that needs tack welding.

This 7 blade design is of precision tolerance. This machine is designed towards a modular format, de-assemble or re-assemble these designs as simply as a small IKEA flat pack process.

What’s Included in your zip folder.

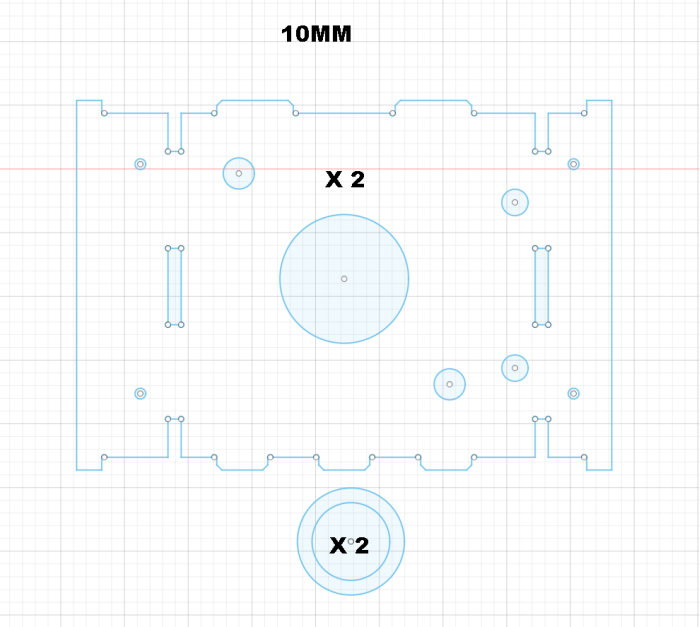

DXF files for the complete CNC cut and built by you.

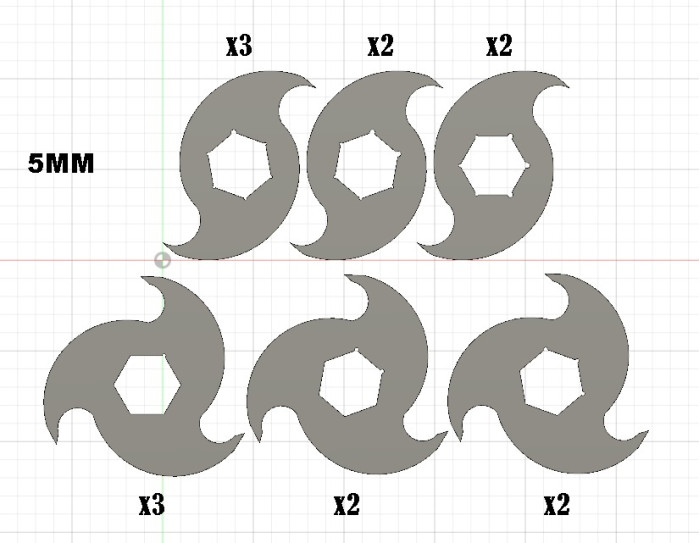

2 + 3 cutting shear blades with 7 rotating teeth on shaft.
Drawing for hex shafts (32mm hex turned at 30mm for 2 x UCFL 206 bearings).
A folder showing Many Build images to assist your build if required.
Extra design tolerance shims included to adjust to your personal project needs.
Motor and gearbox calculator is included for Ratio, power Nm.
The drawings are designed in the metric system
PDF build manual included
PDF parts list and parts measurements

Your Cut and Built Machine can be spray painted or powder coated depending upon your choice of colors for business brand, your product launch or your educational campaign. Consider the impact of color branding and how the improvement of coating will bring the shredder alive with color branding impact. Colors evoke emotions, moods, and feelings. So, spray away and bring the design alive to who you are inside.

All DXF files are ready to go with precision tolerance - send the file to a CNC plasma, laser, waterjet cutting company or workshop cutter. example is ebay.uk laser cutter service.

Important Information About Your Purchase

This is a Computer Aided Design item, meaning there is no physical shipment delivery involved. Upon completing your payment, you will instantly have access to the zip product you've purchased sent to your Email instanly on confirmation of the order process.

You are welcome to use these files to create and sell any physical products from this design. Please note that the digital files and the dxf design within them cannot be resold or redistributed. This design has a excellent re-sale value, once cut, built and offered to the worldwide substainable community.

If you have any questions or would like to discuss ideas, even a cutter you can chat with directly, don’t hesitate to message me. I’m happy to help
