RHINO TWIN SHAFT SHREDDER - CRUSHER -  PLA, ABS, ASA, PETG, PET POOPER ! - 3 rotation shear blades plus new 7 Blade shear rotation 5mm thickness: Premium High Quality Design Engineering.

Ready-made digital files for customers to CNC cut then build from your cutting service. Please be aware that no delivery of the physical item will occur. After payment, Upon your order placed and confirmed, you will immediately receive your ordered digital Zip files sent to your supplied Email Address to cut, then build yourself from these files. These designs offered allow for budding engineers or teaching - educational projects, also, business opportunities for entrepreneurs aiming to establish a new substainable workshop for growth. These designs are specifically designed to facilitate your capability selling these products to a global market, expanding your reach into the worldwide sales opportunities for unique designs startup growth.

RHINO with crank handle

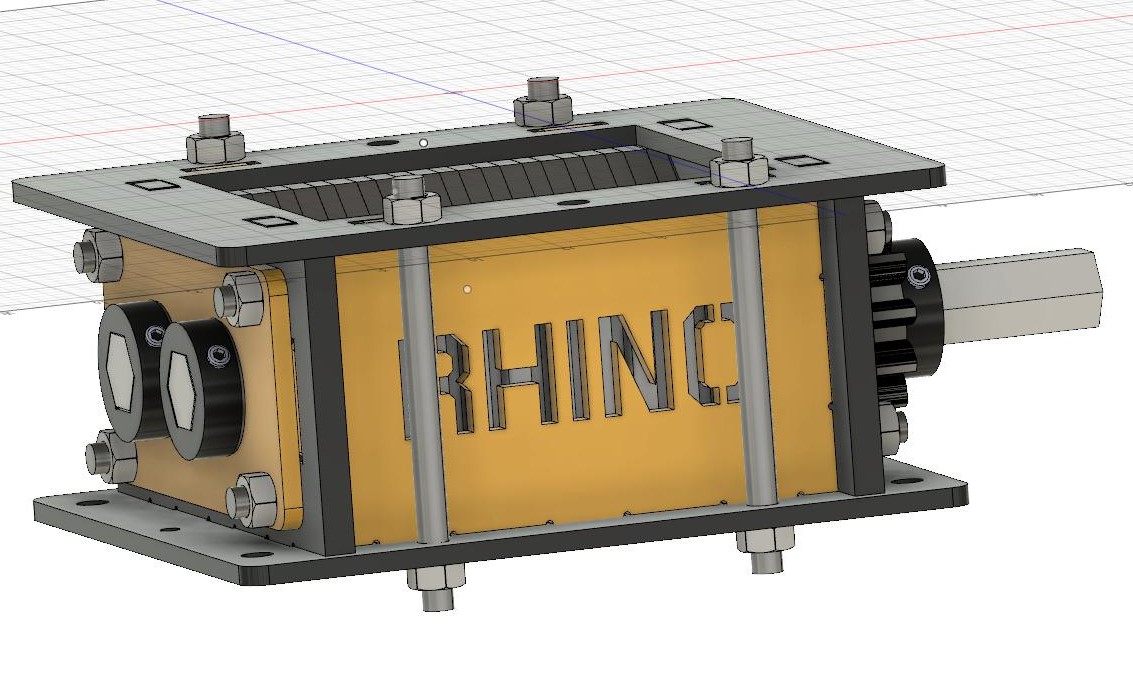

Introducing the RHINO design to complement your various shredding project needs. This new digital DXF file download includes many shredder options plus 3D printer recycling operations. The rotation blade teeth are engineered for shredding at a 5mm thickness.

The principle of these modular designed machines is in the ability to efficiently process various types of waste through a combination of cutting, tearing, and crushing. The Bee mechanical operation involves two parallel shafts equipped with steel blades that rotate in opposite directions. These blades work together to break down larger waste materials into smaller, more manageable pieces required within your project need.

Overview: RHINO is a unique, cost-effective solution. DXF digital download. it offers tab slot fit tolerance features, plus 8mm threaded rods for compression to tab slots in this modern design, perfect for mid scale shredding tasks and peice of mind when undertaking any maintenance needs during down time.

Dimensions of RHINO:
Overall shaft length: 250mm and 205mm
Width: 175mm
Height: 86.25mm
Cutting area: 127mm x 134mm
Box frame length: 149mm

User-Friendly Assembly:
Modular design for easy assembly, similar to IKEA flat-pack furniture. All parts slot together seamlessly with compression of threaded rods and nuts, requiring only basic engineering skills.

Robust Design:
Constructed with strong plates, ensuring durability and strength. Involute gears design CNC/plasma or laser cut steel or Stainless Steel included. these gears are cut at 2 x 8mm x 2 with a 10mm collar. 8 x M8 threaded rods compress the design together. only x 2 drill hole is required in the top of the collar to secure gear in position on shafts. M6 x 2 grub screws - Gears can be steel or stainless plus hardox. if you require manufactured mod gears. They can be purchased online.


Motor: Recommended single-phase 2 kW RPM 1800 motor with 30:1 worm gear/gearbox for shaft rotation and excellent torque (250-+Nm).

Clockwise or Counter Clockwise setup on shaft - shear rotating blades against fixed teeth or shafts for efficient granulation. Can be built with or without large fixed teeth in position.

shims included to adjust positions to your project needs.

What’s Included.
Design DXF files as shown above for the complete build.
3 + 7 cutting shear blades with 12 rotating teeth on each shaft.
Machine drawings EN8 or stainless steel for hex shafts (19mm hex and requiring 30mm x 42mm x 7mm bearings.
many build images also in folder.

PDF Instruction Manual is included for a modular build. New quailty format manual.
Motor and gearbox calculator is included.
The drawings are designed in the metric system

Not Included.
8mm Threaded rods and 8mm nuts. 4 x 6mm gear to shaft grub screws. Cheap at your local supplier.
4 pre-greased bearings 30 x 42 x 7mm. cheap to purchase online like ebay

Simplicity of assembly/disassembly for maintenance needs once you cut this design. All DXF files are ready to go - send the file to a CNC plasma, laser, waterjet cutting company or workshop cutter. example is ebay.uk laser cutters.

Your Machine can be spray painted or powder coated depending upon your choice of colors for business brand, your product launch or your educational campaign. Consider the impact of color branding and how the improvement of coating will bring the shredder alive with color branding impact. Colors evoke emotions, moods, and feelings. So, spray away and bring the design alive to who you are inside.

Important Information About Your Purchase

This is a digital item, meaning there is no physical delivery involved. Upon completing your payment, you will instantly have access to the product you've purchased sent to your Email supplied during the order process.

You are welcome to use these files to create and sell any physical products from this design. Please note that the digital files and the dxf design within them cannot be resold or redistributed. This design has a high re-sale value, once cut, built and offered to the worldwide substainable community.

If you have any questions or would like to discuss ideas, even a cutter you can chat with directly, don’t hesitate to message me. I’m happy to help

Thankyou and help Precious Plastic growth. All orders contribute to world need for substainability
