NEW UPDATED - Microlight - 3 Rotation plus new 7 Blade rotation 4mm shear Shredder: Premium Design Engineering. Images shown are an example for this Digital DIY project.

ModuMaker offer ready-made digital files for customers to CNC cut then build from your cutting service. Please be aware that no shipping delivery of the physical item will occur. After payment, Upon your order placed and confirmed, you will immediately receive your ordered digital Zip files sent to your supplied Email Address, then build yourself from these files. These designs offered allow for budding engineers or teaching - educational projects, business opportunities for entrepreneurs aiming to establish a new substainable workshop for growth. Specifically designed to facilitate your capability for selling these products to a global market, expanding your reach into worldwide sales.

The Microlight.
Introducing the upgraded  design complete design files to complement various shredding project needs. This new download includes the original 3 blade but with upgraded file 7-blade design, upgraded to specifically include 3D printer recycling operators. The 7 blade teeth are engineered for shredding 3D filament at a 4mm thickness.

The ability of Data destruction also begins at a Microlight level. secure destruction is achieved to compliance non retrieve process. need to shred a credit or sim data, even usb data.no problem...

Overview of your project: The Microlight Shredder is a unique, cost-effective solution. it offers tab slot fit tolerance features with a modern design, perfect for small-scale shredding tasks with a unique twin sieve plus underwrap sieve to compliment your project needs. Also included are 2 x hopper dxf designs. Cone and straight. The involute gears dxf design is modular and bolts together from cutter. M4 bolts x 4 plus 5mm x 2 grub screws hold in position on shafts.

Dimensions of design when cut and build:
Overall shaft length: 190mm
Width: 135mm
Height: 69mm
Cutting area: 107mm x 100mm

Weight in KG when CNC cut plus fully built - 8

User-Friendly Assembly:
The MicroLight is designed for easy assembly, similar to IKEA flat-pack furniture. All parts slot together seamlessly, requiring only basic engineering skills.

Your Robust Design:
Constructed with 8mm, 5mm, 4mm, and 3mm steel plates, ensuring durability and strength. Spur gears design CNC/plasma or laser cut steel or Stainless Steel.

Versatile Operation example:
Compatible with a variety of motors, including small motors (1.0 KW upwards), torque drills, and stepper motors (Nema 42 - 48 with ratio planetary gear). Hand ratchet operation with flexible wrench possible. Also with crank handle for manual operation.

Motor Example: Recommended single-phase 1kW RPM 1800 motor with 30:1 worm gear/gearbox for shaft rotation and excellent torque (180+Nm).

This DXF design Includes 5mm perforated twin under wrapped mesh sieve design plus extra 0.5mm x 2 sieve tab shims included to adjust sieve height positions to your build project needs.

What’s Included in your zip folder

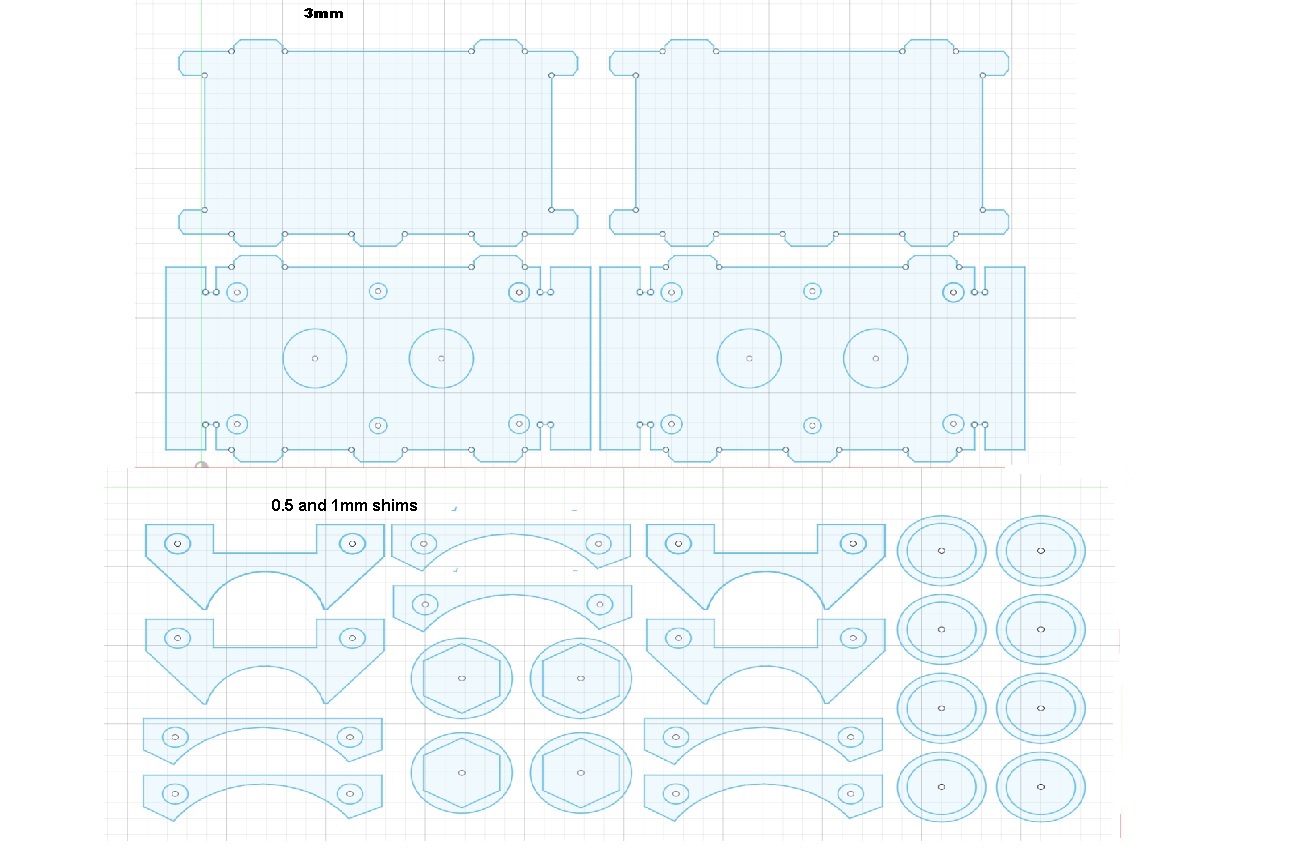

DXF files for the complete build shown in images above.
3 + 7 cutting shear rotating teeth for each shaft.
2 x drawings for hex shafts (19mm hex}.
A folder showing my Build images to assist your build if you require.
Extra dxf design tolerance shims included to adjust to your project needs.
Motor and gearbox calculator is included for Ratio, power Nm.
The drawings are designed in the metric system
PDF Instruction Manual is included for a modular build.
PDF parts list and parts measurements.

For building this design you will need to purchase.
M6 Threaded rods and M6 bolts. 4 x 6mm gear to shaft grub screws. Cheap at your local supplier.
4 pre-greased bearings (26mm x 17mm x 5mm). cheap to purchase online.

Your Machine can be spray painted or powder coated depending upon your choice of colors for business brand, your product launch or your educational campaign. Consider the impact of color branding and how the improvement of coating will bring the shredder alive with color branding impact. Colors evoke emotions, moods, and feelings. So, spray away and bring the design alive to who you are inside.

All DXF files are ready to go - send the file to an CNC plasma, laser, waterjet cutting company or workshop cutter. example is ebay.uk laser cutter service.

Important Information About Your Purchase

This is a Computer Aided Design item, meaning there is no physical shipment delivery involved. Upon completing your payment, you will instantly have access to the zip product you've purchased sent to your Email instanly on confirmation of the order process.

You are welcome to use these files to create and sell any physical products from this design. Please note that the digital files and the dxf design within them cannot be resold or redistributed. This design has a excellent re-sale value, once cut, built and offered to the worldwide substainable community.

If you have any questions or would like to discuss ideas, even a cutter you can chat with directly, don’t hesitate to message me. I’m happy to help

Thank you
